Southern Electronic has been dedicated to providing custom service of various kinds of inductors, transformers, resistors for global customer since 1989. We have established complete and efficient production process and quality inspection process to ensure the steady and reliable quality of our products.
1. Custom process of inductors and transformers
(1) Understand customer's needs
(2) Engineers design the product with regard to shape, dimension, capacitance, etc.
(3) Manufacture samples of the product according to the design drawings
(4) Purchase of raw materials and parts according to the design drawings
(5) Create a manufacturing plan, mass production and on time delivery
(6) After sales service
2. Custom options of inductors and transformers
(1) Cores: special materials including silicon steel, iron powder, iron powder, ferrite, nickel steel, etc.
(2) Core types: C core, laminated core, U core, etc.
(3) Terminals: various wires, terminals and printed circuit board spools
(4) Shapes: various types such as rod, toroidal, fixed, round
(5) Parameters: dimension, power, voltage, working frequency, number of windings, etc.

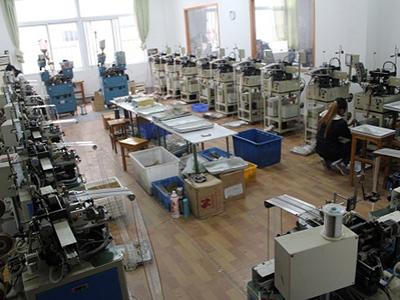

- Automatic resistance coil winding machine with single station: 35 sets
- Automatic transformer and inductor coil winding machine with 10-12 stations: 8 sets
- Programmable controlled cable winding machine: 45 sets
- Resistance coating production line: 4 sets
- Horizontal inductor coating production line: 2 sets

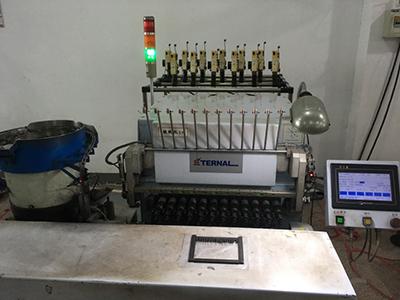

- Programmable inductor winding machine: 350 sets
- Semi-automatic programmable solder pot: 6 sets;
- Manual solder pot: 18 sets
- Automatic argon arc welding machine: 1 sets
- 10KW AC and DC power supply: 1 sets
- Thick wire winding machine: 1 sets
- Automatic shear testing machine: 6 sets
- Automatic wrapping machine: 8 sets
- Vertical braiding machine: 4 sets
- Fluorescence spectrometer: 1 sets
- HP4191A RF impedance analyzer: 1 sets
- HP4192A RF impedance analyzer: 1 sets
- Precision low resistance tester: 4 sets
- Transformer integrated test bench: 8 sets
- LCR meter: 50 sets
- Vacuum impregnation machine: 3 sets
- Spot welding: 10 sets
- Custom transformer production line: 2 sets
- Custom power resistor production line: 1 set
- And more…

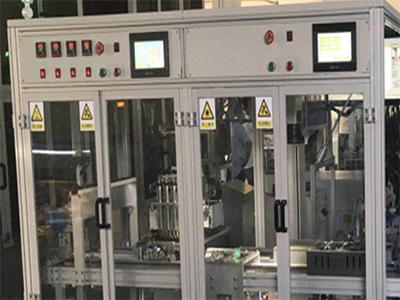

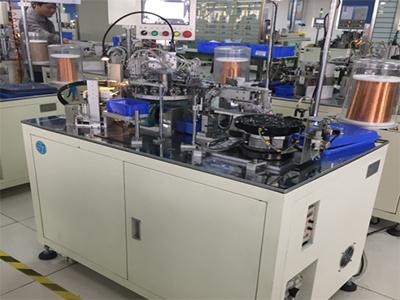

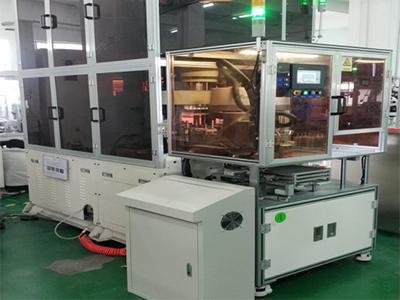

- Auto winding machine
- Auto Robot dispenser
- Auto-place machine
- Auto solder machine
- Multi-functional machine
- Laser marking machine
- Automatic Optical Inspection Machine(AOI)
- Auto V/M insp. Machine
- Solder pot
- Ultrasonic cleaner
- Spot welding machine
- Punching Table
- Tunnel furnace
- Electron microscope (CCD)
- Taping machine
- Image Tester
- Coating Thickness Measuring Instrument
- Environmental Test Instrument
- Digital Measuring Projector
- Interlayer Insulation Tester
- Tension Tester
- Strain Tester
- Peel-Force Test
- HP285A LCR Tester
- 7600 High-V Test Equipment
- DC（0~120A）Bias Current Source
- Comprehensive Test Instrument
- Tensile Strength Test
- Pulse Test
- Differential Scanning Calorimeter
- Laser Particle Size Analyzer
- X-ray Fluoroscopy
- Scanning Electron Microscope
- Infrared Reflow Oven
- High Temperature Chamber

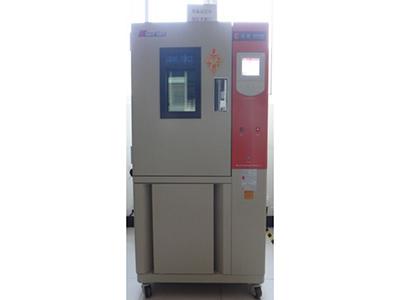

- Temperature & Humidity Chamber

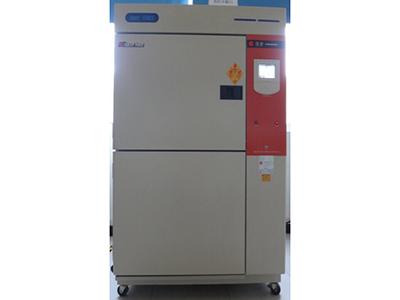

- Thermal Shock Chamber
- Salt Spray Tester
- Vibration Machine

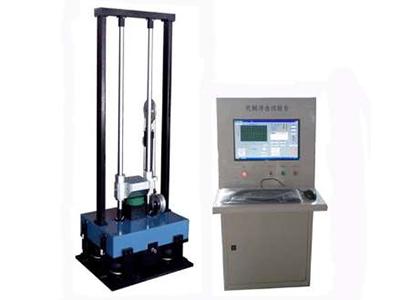

- Drop Test Machine
- Acceleration Shock Testbed

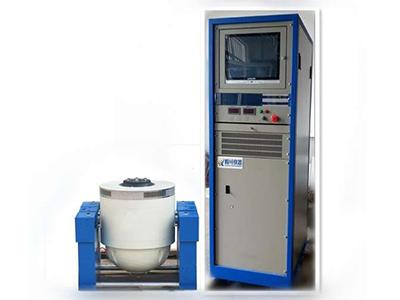

- Electromagnetic-Type Vibration Testbed

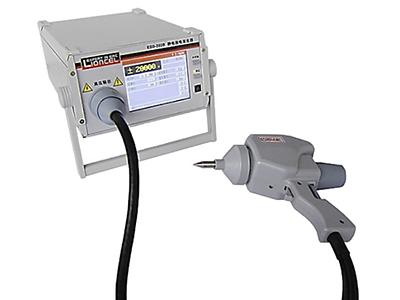

- Electrostatic Discharge
(1) Raw materials: We purchase materials from qualified suppliers. We go to their factories for sampling test.
(2) Manufacturing process inspection
- Automatic winding: Inspect winding diameter and number of windings
- Automatic tinning: Inspect the length of the tin cover
- Automatic wrapping: Inspect stripping length
- Automatic taping
- Automatic cutting: Inspect the length of foot with tin covering, foot diameter
(3) Finished products inspection: L value detection, electrical performance test, inspection of the adhesion of magnetic strip and winding, dimension inspection, packaging inspection
| Supplier Management | Production operation | Customer |
| •On site quality audit •Yearly Quality Performance Review • SCAR | • Flow chart and MI • First Pass Yield •100% V/M and E-test • Operator Training • TPM • Failure analysis • Pareto Analysis • Poka Yoke • Control Plan • FMEA • Process Audit | •Customer satisfaction programs • Failure Analysis |
| • IMI Inspection • AQL 0.65, C=0: For Visual Check and Electrical test | IPQC inspection • Key Process Control • Fast Response • Control Point setup and review • SPC FPA Inspection • AQL 0.1, C=0 • Visual & Mechanical, Electrical • Solderability test | Reliability • Temp/Humidity • High Temp • Thermal shock • Solderability |
