Push Pull Transformer, Low Frequency Transformer

  • Push Pull Transformer
  • Push Pull Transformer

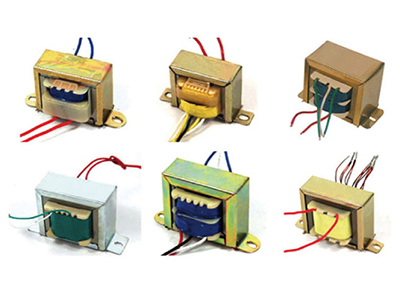

Southern Group can provide customers with various specifications of 50/60HZ low frequency power transformers. It is applicable to 50Hz and 60Hz applications in avionics, medical industry, etc.

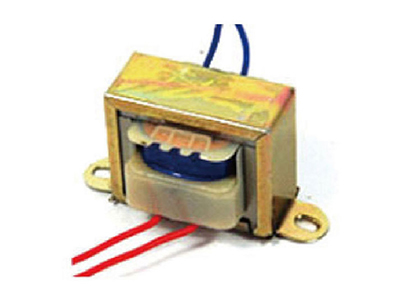

Push Pull Transformer

Features
1. Made by EI type steel sheet, economic and convenient.
2. Wide application and flexible types: it suits medium-sized power.

Operating conditions
1. Ambient temperature: -25℃~+70℃
2. Relative humidity: no more than 90% when the temperature is 40℃;
3. Atmospheric pressure: 860~1060mbar (about650〜800mmHg)

Working frequency range: 50Hz/60Hz

Insulation heat resistance class: class B (130℃)

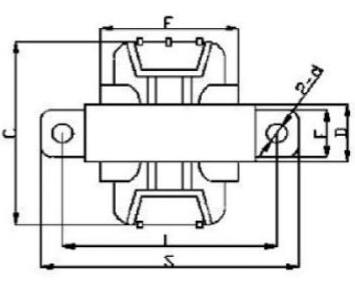

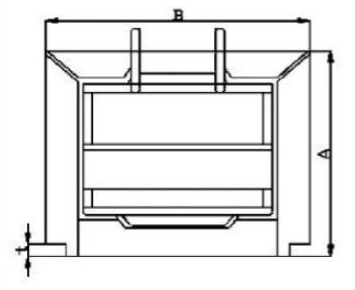

Typical Performance Parameters and Dimensions
  • Push Pull Transformer
  • Push Pull Transformer
Name Standard Output (W) ±1 ±1 Max ±1 ±0.5 Max ±1 ±0.3 ±1 t Reference Weight
A B C D E F L d S
EI41-20 5.5 36 43.5 43 22.5 18 30 52 3.5*4.5 60 0.8 0.2
EI41-25 7 36 43.5 50 27.5 23 30 52 3.5*4.5 60 0.8 0.25
EI48-18 8 43 50.5 42 20.5 16 33 59 4.5*6.5 69 0.8 0.3
EI48-20 10.5 43 50.5 44 22.5 18 33 59 4.5*6.5 69 0.8 0.37
EI48-24 12.5 43 50.5 50 26.5 21 33 59 4.5*6.5 69 0.8 0.4
EI48-30 15.5 43 50.5 56 32.5 28 33 59 4.5*6.5 69 0.8 0.5
EI57-25 18 60.5 59.5 53 27.5 24 39 72 4.5*6.5 83 0.8 0.65
EI57-30 24 50.5 59.5 58 32.5 28 39 72 4.5*6.5 83 0.8 0.7
EI57-35 30 50.5 59.5 62 37.5 33 39 72 4.5*6.5 83 0.8 0.8
EI57-45 42 50.5 59.5 75 47.5 42 40 72 4.5*6.5 83 0.8 1.1

Note: the high power type requires a support terminal structure.

We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
