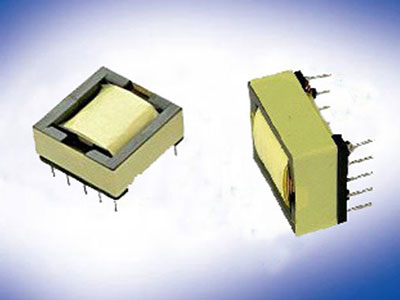

Switch Mode Transformer (EFD, EPC Core)
EFD/EPC power switch mode transformer uses flat ferrite core, extremely suited for products with limited height, like ultra-thin switching power, charger, etc. EFD/EPC transformers can simultaneously meet the requirements of power transformer on high power, ultra-thin volume and temperature rise. Besides, it has features of high permeability, high magnetic saturation and low magnetic core loss.
Parameters
| Type | Pin Number | Dimensions (mm) | ||||
| A | B | C | D | E | ||
| EFD-12 | 8 | 6 | 17 | 20 | 3.0 | 13.5 |
| EFD-15 | 10 | 7.3 | 18.2 | 21.35 | 2.5 | 15 |
| EFD-15 | 10 | 7.5 | 19.3 | 22.6 | 3.0 | 16.7 |
| EFD-20 | 10 | 9.4 | 25.3 | 27.7 | 3.75 | 21.7 |
| EFD-20 | 12 | 9.7 | 24 | 26.8 | 3 | 20 |
| EFD-25 | 10 | 13.4 | 29.7 | 35.4 | 5 | 25 |
| EFD-25 | 10 | 12.6 | 29.7 | 31.5 | 5 | 25 |
| EFD-30 | 12 | 12.6 | 31.6 | 35.5 | 5 | 30 |
We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
