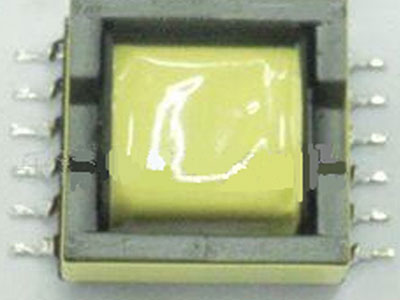

High Voltage Transformer (EFD Core)

Southern Group produced EFD transformer adopts flat type ferrite core. It has features of low magnetic leakage, low loss, wide working frequency, strong anti-interference ability, etc. So it is widely used in switching power supply, LED power supply, adapter, charger and so on.

Parameters

Type	Pin Number	Dimensions (mm)					Fig
		A	B	C	D	E
EFD-12	4+4	6	17	20	3.0	13.5	2
EFD-15	5+5	7.3	18.2	21.35	2.5	15	1
EFD-15	5+5	7.5	19.3	22.6	3.0	16.7	2
EFD-20	5+5	9.4	25.3	27.7	3.75	21.7	2
EFD-20	6+6	9.7	24	26.8	3	20	1
EFD-25	5+5	13.4	29.7	35.4	5	25	2
EFD-25	5+5	12.6	29.7	31.5	5	25	1
EFD-30	6+6	12.6	31.6	35.3	5	30	2

We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
