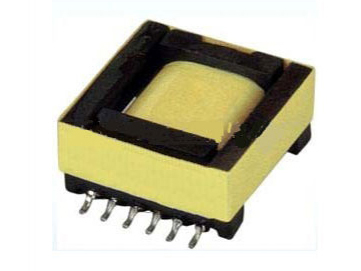

High Frequency Transformer (EPC Core)

Southern Group provided EPC power transformer has a rated power ranging from 1.0VA to 24VA. It is widely used in TV, display, switching power supply, etc. And we can customize the size based on customers’ demands. The following sizes are only for reference.

Parameters

Type	Pin Number	Dimensions (mm)
		A	B	C	D	E
EPC-13	4+4	6	17	20	3.0	13.5
EPC-15	5+5	7.3	18.2	21.35	2.5	15
EPC-19	5+5	7.5	19.3	22.6	3.0	16.7
EPC-19	5+6	9.4	25.3	27.7	3.75	21.7
EPC-20	6+6	9.7	24	26.8	3	20
EPC-25	5+5	13.4	29.7	35.4	5	25
EPC-30	5+5	12.6	29.7	31.5	5	25
EPC-35	6+6	12.6	31.6	35.3	5	30

We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
