Flyback Transformer, Line Output Transformer (EER, ERL, ETD Core)

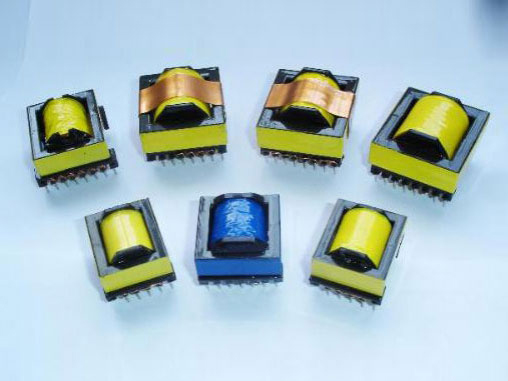

EER/ERL/ETD electric transformer adopts cylindrical central pole, which is very easy for wire winding. This design increases the cross section and output power of the winding resistor. Thus it is extremely suitable for making high power main transformer of multiple outputs.

Parameters

•
•
•
•

Type	Pin Number	Dimensions (mm)
		A	B	C+/-0.5	D+/-0.5	E	F
ER25.5	8	19.5	19.7	12.5	4	5	25.5
ER28	12	30.5	23	17.5	4	5	31
ER28	12	23.1	28.2	25	4	5	29.1
ER28	12	36	27	20	4	5	30
ER28	12	26.3	37.1	30	4	5	30.2
ER33	14	37.5	28	22.5	4	5	36
ER35	14	43.5	28	22.5	4	5	35.5
ER35	16	29.1	40.3	35.4	4	5	40.3
ER39	16	46	31.1	25	4	5	43.1
ER39	16	33	41.5	30.85	4	7.5	42.3
ER40	16	48	31.1	25	4	5	43.1
ER4215	14	45.5	30	25	4	5	42
ER4220	14	44	37.5	36	4	5	42

We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
