Milliohm Resistor
Milliohm resistor features a smaller resistance and it can be used in circuit for current sampling. Meanwhile, this milliohm resistor has stronger electricity conduction capacity and better heat resistance, helping to extend its life span.

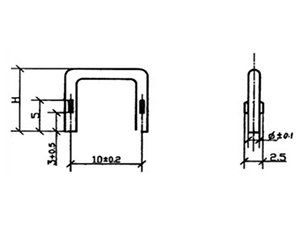

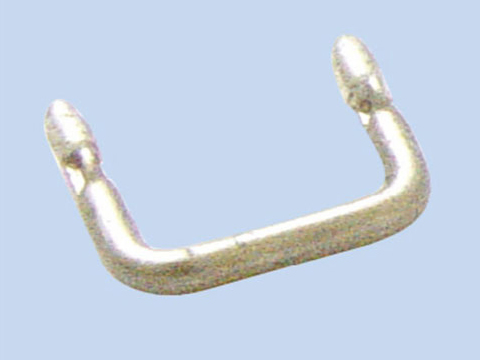

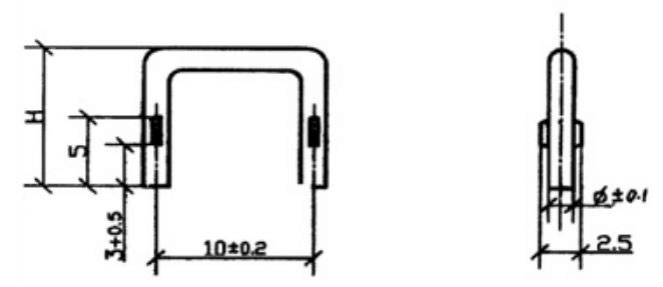

Round Wire Milliohm Resistor
| Rated Power (W) | Resistance Range (mQ) | Dimensions ( mm ) | |
| H | Φ | ||
| 2 | 5~10 | < 20 | 1.6 |
| 2 | 5~20 | < 20 | 1.4 |

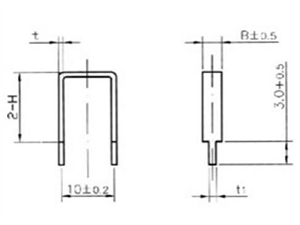

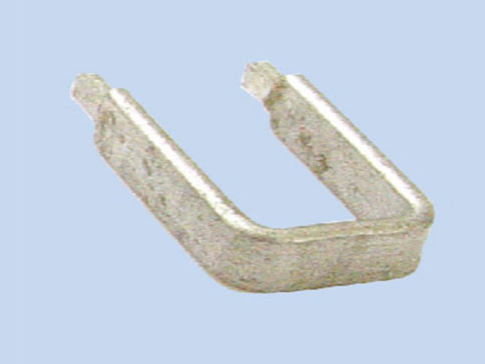

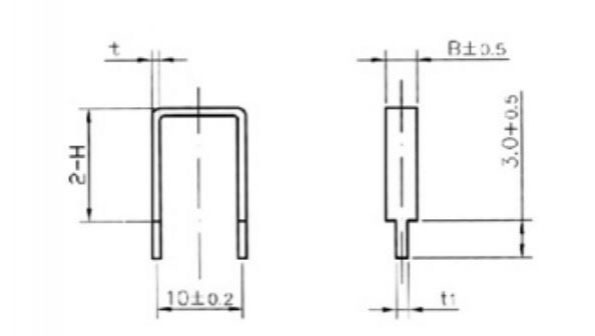

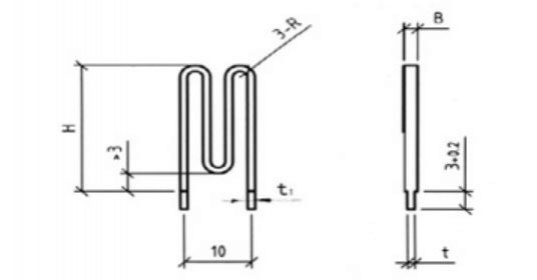

| Rated Power (W) | Resistance Range (mΩ) | Dimensions (mm) | |||
| H | B | t | t1 | ||
| 2 | 10 〜20 | < 20 | 1.8-2.7 | 0.9 | 0.8 |
| 3 | 5~10 | < 20 | 3.1 | 0.9 | 0.8 |
| 4 | 3~10 | < 20 | 3.7 | 1.1 | 1.8 |
| 5 | 3〜10 | < 20 | 3.7 | 1.1 | 1.8 |

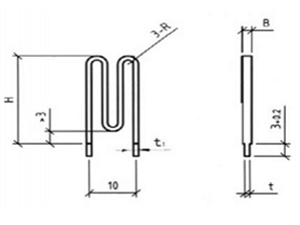

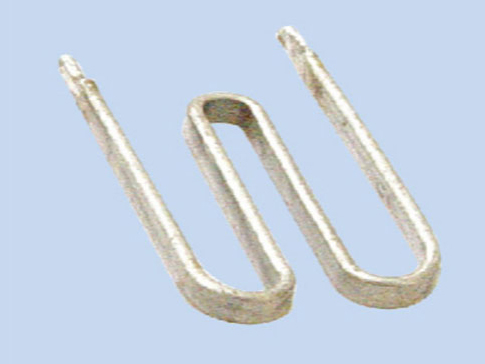

| Rated Power (W) | Resistance Range (mΩ) | Dimensions ( mm ) | |||
| H | B | t | t1 | ||
| 2 | 20-50 | < 20 | 1.8-2.7 | 0.9 | 0.8 |
| 3 | 20-50 | < 20 | 3.1 | 0.9 | 0.8 |
| 4 | 10-60 | < 20 | 3.7 | 1.1 | 1.8 |
| < 20 | 3.7 | 1.1 | 1.8 | ||
Milliohm resistors are also referred to as current sensing resistors. Shown above are three types of resistors with different resistance ranges. With over 30 years of development, we are now manufacturing passive electronic components like resistors, inductors and transformers with custom services.
