SMD Resistor, Surface Mount Resistor
Plenty of SMD resistors are used every day. They are square. Both ends of the resistor features a metal region, making it capable to be welded together with the PCB (printed circuit board).

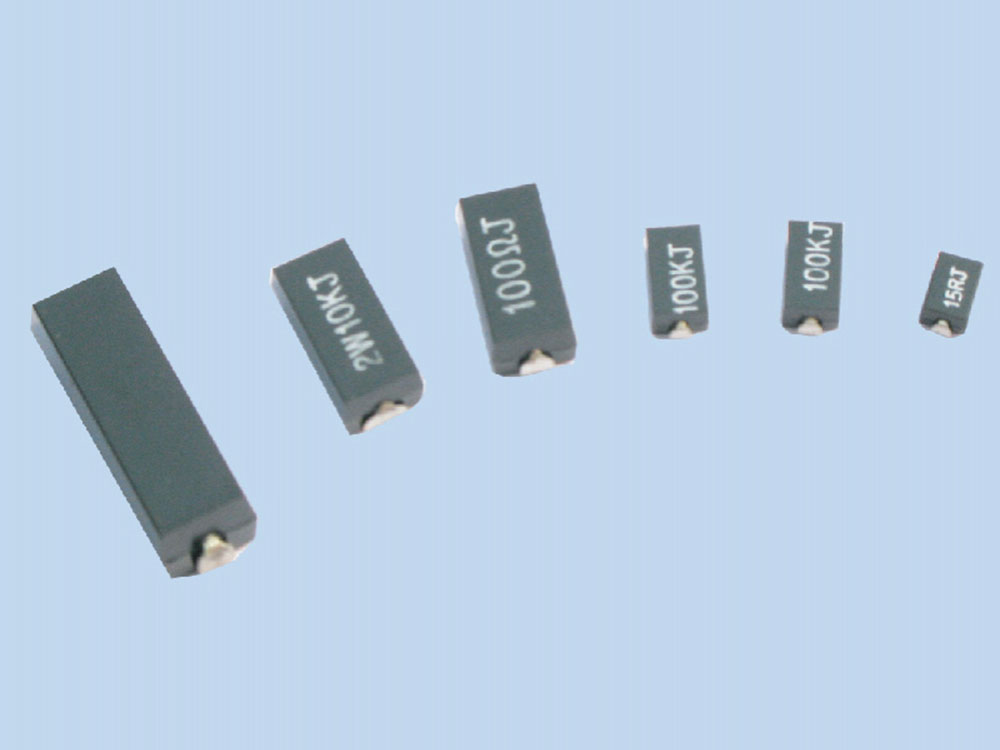

RAB1 Surface Mount ResistorsSouthern Group is professional in offering RAB1 surface mount resistors for surface mounting. It is usually manufactured into square shape. Its leads or pins can be welded on the PCB board instead of passing through the PCB board.

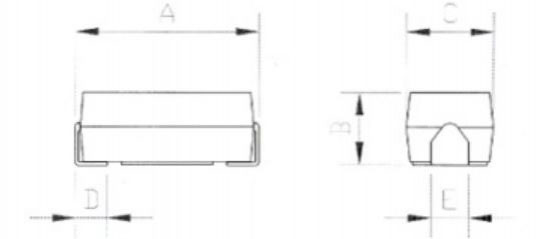

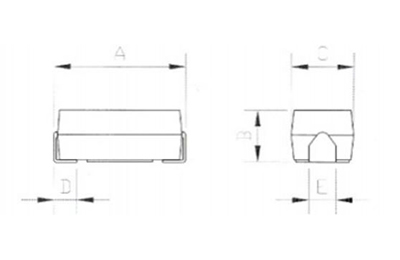

Shapes and Dimensions
| Type | Power Rating (W) | max. Voltage (V) | Resistance Range (Ω) | Dimensions (mm) | ||||
| A | B | C | D | E | ||||
| RAB1-0.5 | 0.5 | 33 | 0.1-1K | 5.1±0.5 | 2.44 ±0.38 | 3.18 ±0.25 | 0.63min | 1.14±0.38 |
| RAB1-1 | 1 | 58 | 0.1-5K | 6.35 ±0.5 | 2.79 ±0.38 | 3.81 ±0.38 | 0.8min | 1.5±0.38 |
| RAB1-2 | 2 | 120 | 0.1-10K | 11.4 ±0.8 | 4.57 ±0.5 | 5.71 ±0.38 | 1.5 min | 2.0±0.38 |
| RAB1-3 | 3 | 250 | 0.1-20K | 20.6 ±0.8 | 6.99 ±0.5 | 6.93±0.5 | 2.16±0.5 | 2.79±0.5 |
| RAB1-5 | 5 | 300 | 0.1-30K | 20.6 ±0.8 | 6.99 ±0.5 | 6.93 ±0.5 | 2.16±0.5 | 2.79±0.5 |
| Load Life (1000h) | △R≤± (5%+0.1Ω) |
| Moisture Resistance | △R≤±(5%+0.1Ω) |
| Fast Temperature Change | △R≤±(1%+0.05Ω) |
| Temperature Coefficient | 300PPM/℃ |
| Dielectric Strength | 500V |
| Solder Ability | 95% Coverage |
| Working Temperature Range | -55~+125℃ |
RAB2 Surface Mount Film Resistors
Southern Group can provide RAB2 surface mount film resistors. This flat type resistor helps to save a lot of space, with a minimum height of 2.82mm.
| Type | Power | Max Voltage (Max Current) | Standard Resistance Range | Max Working Voltage | Limit Voltage |
| RAB2-0.5 | 0.5 | 33V(10A) | 5-1MΩ | 200V | 500V |
| RAB2-1 | 1 | 58V (20A) | 0.1-1MΩ | 200V | 500V |
| RAB2-2 | 2 | 120V(30A) | 0.1-1MΩ | 250V | 625V |
| RAB2-3 | 3 | 200V (30A) | 1-1MΩ | 300V | 750V |
| RAB2-5 | 5 | 250V (30A) | 1-1MΩ | 350V | 875V |

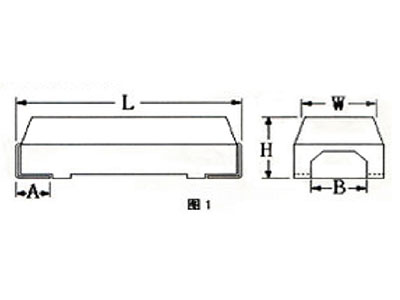

| Type | L | H(Max) | W | A(Min) | B |
| RAB2-0.5 | 5.20±0.5 (0.204±0.020) | 2.82 (0.111) | 3.2±0.25 (0.125±0.010) | 0.63 (0.025) | 1.14±0.4 (0.045±0.015) |
| RAB2-01 | 6.55±0.5 (0.258±0.020) | 3.17 (0.125) | 3.80±0.40 (0.150±0.015) | 0.80 (0.232) | 1.50±0.4 (0.060±0.015) |
| RAB2-02 | 11.40±0.8 (0.449±0.032) | 5.13 (0.202) | 5.70±0.40 (0.20±0.02) | 1.50 (0.060) | 1.78±0.5 (0.070±0.020) |
| RAB2-03 | 15.90±0.8 (0.625±0.032) | 6.86 (0.270) | 7.00±0.38 (0.275±0.015) | 1.27 (0.050) | 2.16±0.4 (0.085±0.016) |
| RAB2-05 | 26.60±0.5 (0.811±0.020) | 7.49 (0.295) | 6.90±0.50 (0.273±0.020) | 1.60 (0.063) | 2.60±0.70 (0.102±0.028) |
The SMD resistor also called a surface mount resistor, is a kind of thin film resistor used in printed circuit boards. The following products are some of the other types of resistors we produce, and besides the specifications listed in the page, we also provide custom service for passive electronic components like inductors and electronic transformers.
