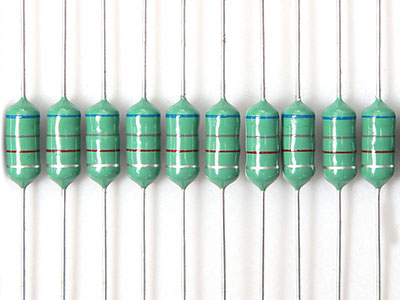

Southern Group produced axial leaded conformal coated inductors are lightweight and coated with epoxy resin to ensure the using reliability. We provide the following four types of this series resistor, and you can select from 0307 to 0512. and you can contact us to customize if the followings are not what you want.
Applications
Televisions, VCR, OA equipment, PC, Other electronic equipment, etc.

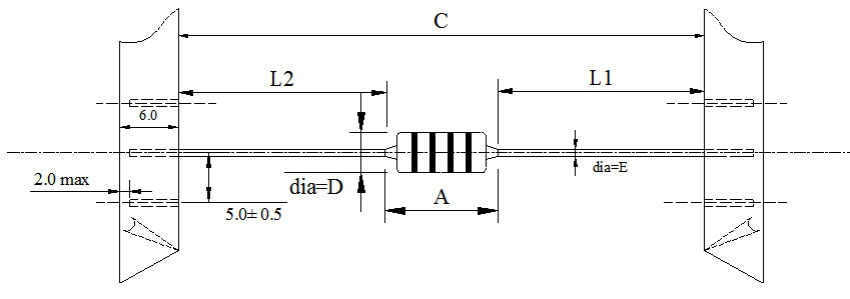

LGA0307TYPE: A:7.0max D:3.2max C:52 or 26 E:0.60 |L1-L2|<1.0
LGA0410TYPE: A:10.0max D:4.3max C:52 E:0.65 |L1-L2|<1.0
LGA0510TYPE: A:10.0max D:5.4max C:52 E:0.65 |L1-L2|<1.0
LGA0512TYPE: A:12.0max D:5.4max C:52 E:0.65 |L1-L2|<1.0
Inductance (μH) | Tolerance | Qmin | Test frequency L,Q(MHz) | Self-resonant fre.(MHz min) | DC resistance ohm(max) | Rated current L,Q(MHz) |
0.22 | M | 35 | 25.2 | 150 | 0.4 | 400 |
0.33 | M | 35 | 25.2 | 150 | 0.48 | 370 |
0.39 | M | 35 | 25.2 | 150 | 0.51 | 350 |
0.47 | M | 35 | 25.2 | 150 | 0.56 | 330 |
0.56 | M | 40 | 25.2 | 150 | 0.61 | 320 |
0.68 | M | 40 | 25.2 | 150 | 0.67 | 310 |
0.82 | M | 40 | 25.2 | 150 | 0.74 | 290 |
1 | M | 40 | 25.2 | 150 | 0.8 | 270 |
1.2 | M | 50 | 7.96 | 140 | 0.9 | 260 |
1.5 | M | 50 | 7.96 | 130 | 1 | 250 |
1.8 | M | 50 | 7.96 | 120 | 1.1 | 240 |
2.2 | M | 50 | 7.96 | 110 | 1.2 | 230 |
2.7 | M | 50 | 7.96 | 100 | 1.3 | 220 |
3.3 | M | 50 | 7.96 | 95 | 1.4 | 210 |
3.9 | M | 50 | 7.96 | 65 | 1.6 | 200 |
4.7 | M | 50 | 7.96 | 56 | 1.7 | 190 |
5.6 | M | 50 | 7.96 | 48 | 1.9 | 180 |
6.8 | M | 50 | 7.96 | 37 | 2 | 175 |
8.2 | M | 50 | 7.96 | 25 | 2.2 | 165 |
10 | K | 50 | 7.96 | 21 | 2.5 | 160 |
12 | K | 50 | 2.52 | 19 | 2.5 | 150 |
15 | K | 50 | 2.52 | 17 | 2.8 | 145 |
18 | K | 50 | 2.52 | 13 | 3.1 | 140 |
22 | K | 50 | 2.52 | 9.6 | 3.4 | 130 |
27 | K | 50 | 2.52 | 7.2 | 3.8 | 125 |
33 | K | 50 | 2.52 | 6.8 | 4.1 | 120 |
39 | K | 50 | 2.52 | 6.5 | 4.5 | 115 |
47 | K | 50 | 2.52 | 6.3 | 4.9 | 110 |
56 | K | 50 | 2.52 | 6.2 | 5.3 | 105 |
68 | K | 50 | 2.52 | 5.7 | 5.8 | 100 |
82 | K | 50 | 2.52 | 5.3 | 6.3 | 95 |
100 | K | 50 | 2.52 | 4.8 | 7 | 90 |
120 | K | 50 | 0.796 | 3.8 | 13 | 90 |
150 | K | 50 | 0.796 | 3.5 | 15 | 85 |
180 | K | 50 | 0.796 | 3.3 | 16 | 80 |
220 | K | 50 | 0.796 | 3 | 17 | 75 |
270 | K | 50 | 0.796 | 2.8 | 19 | 65 |
330 | K | 50 | 0.796 | 2.6 | 20 | 60 |
390 | K | 50 | 0.796 | 2.4 | 22 | 55 |
470 | K | 50 | 0.796 | 2.25 | 24 | 55 |
560 | K | 50 | 0.796 | 2.1 | 26 | 50 |
680 | K | 50 | 0.796 | 1.95 | 28 | 45 |
820 | K | 50 | 0.796 | 1.85 | 30 | 40 |
※ Test meter: L&Q HP4284A; Srf HM2770;
※ For special specifications please contact with us.
Inductance (μH) | Tolerance | Qmin | Test Fre. L,Q(MHz) | Self-resonant fre.(MHz min) | DC resistance ohm(max) | Rated current L,Q(MHz) |
0.22 | M | 45 | 25.2 | 300 | 0.1 | 1400 |
0.27 | M | 45 | 25.2 | 270 | 0.11 | 1320 |
0.33 | M | 45 | 25.2 | 250 | 0.12 | 1280 |
0.39 | M | 45 | 25.2 | 230 | 0.13 | 1200 |
0.47 | M | 45 | 25.2 | 220 | 0.14 | 1150 |
0.56 | M | 45 | 25.2 | 200 | 0.15 | 1100 |
0.68 | M | 45 | 25.2 | 190 | 0.16 | 1030 |
0.82 | M | 45 | 25.2 | 170 | 0.17 | 980 |
1 | M | 45 | 25.2 | 157 | 0.19 | 920 |
1.2 | M | 50 | 7.96 | 144 | 0.21 | 880 |
1.5 | M | 50 | 7.96 | 131 | 0.23 | 830 |
1.8 | M | 55 | 7.96 | 121 | 0.25 | 790 |
2.2 | M | 55 | 7.96 | 110 | 0.28 | 750 |
2.7 | M | 60 | 7.96 | 100 | 0.3 | 720 |
3.3 | M | 65 | 7.96 | 94 | 0.34 | 670 |
3.9 | M | 65 | 7.96 | 55 | 0.37 | 640 |
4.7 | M | 70 | 7.96 | 50 | 0.39 | 620 |
5.6 | M | 70 | 7.96 | 48 | 0.43 | 590 |
6.8 | M | 75 | 7.96 | 37 | 0.48 | 550 |
8.2 | M | 80 | 7.96 | 25 | 0.52 | 530 |
10 | K | 65 | 7.96 | 21 | 0.58 | 500 |
12 | K | 50 | 2.52 | 19 | 0.63 | 480 |
15 | K | 50 | 2.52 | 17 | 0.72 | 460 |
18 | K | 50 | 2.52 | 13 | 0.77 | 430 |
22 | K | 50 | 2.52 | 9.6 | 0.84 | 410 |
27 | K | 55 | 2.52 | 7.2 | 0.94 | 390 |
33 | K | 55 | 2.52 | 6.8 | 1.03 | 370 |
39 | K | 50 | 2.52 | 6.5 | 1.12 | 350 |
47 | K | 45 | 2.52 | 6.3 | 1.22 | 340 |
56 | K | 40 | 2.52 | 6.2 | 1.34 | 320 |
68 | K | 40 | 2.52 | 5.7 | 1.47 | 305 |
82 | K | 35 | 2.52 | 5.3 | 1.62 | 290 |
100 | K | 30 | 2.52 | 4.8 | 1.8 | 275 |
120 | K | 55 | 0.796 | 3.8 | 3.7 | 185 |
150 | K | 45 | 0.796 | 3.5 | 4.2 | 175 |
180 | K | 50 | 0.796 | 3.3 | 4.6 | 165 |
220 | K | 55 | 0.796 | 3 | 5.1 | 155 |
270 | K | 65 | 0.796 | 2.8 | 5.8 | 145 |
330 | K | 65 | 0.796 | 2.6 | 6.4 | 137 |
390 | K | 65 | 0.796 | 2.4 | 7 | 133 |
470 | K | 60 | 0.796 | 2.25 | 7.7 | 126 |
560 | K | 60 | 0.796 | 2.1 | 8.5 | 120 |
680 | K | 55 | 0.796 | 1.95 | 9.4 | 113 |
820 | K | 55 | 0.796 | 1.85 | 10.5 | 105 |
1000 | K | 55 | 0.796 | 1.4 | 14 | 100 |
56 | K | 40 | 2.52 | 6.2 | 1.34 | 320 |
68 | K | 40 | 2.52 | 5.7 | 1.47 | 305 |
82 | K | 35 | 2.52 | 5.3 | 1.62 | 290 |
100 | K | 30 | 2.52 | 4.8 | 1.8 | 275 |
120 | K | 55 | 0.796 | 3.8 | 3.7 | 185 |
150 | K | 45 | 0.796 | 3.5 | 4.2 | 175 |
180 | K | 50 | 0.796 | 3.3 | 4.6 | 165 |
220 | K | 55 | 0.796 | 3 | 5.1 | 155 |
270 | K | 65 | 0.796 | 2.8 | 5.8 | 145 |
330 | K | 65 | 0.796 | 2.6 | 6.4 | 137 |
390 | K | 65 | 0.796 | 2.4 | 7 | 133 |
470 | K | 60 | 0.796 | 2.25 | 7.7 | 126 |
560 | K | 60 | 0.796 | 2.1 | 8.5 | 120 |
680 | K | 55 | 0.796 | 1.95 | 9.4 | 113 |
820 | K | 55 | 0.796 | 1.85 | 10.5 | 105 |
1000 | K | 55 | 0.796 | 1.4 | 14 | 100 |
270 | K | 65 | 0.796 | 2.8 | 5.8 | 145 |
330 | K | 65 | 0.796 | 2.6 | 6.4 | 137 |
390 | K | 65 | 0.796 | 2.4 | 7 | 133 |
470 | K | 60 | 0.796 | 2.25 | 7.7 | 126 |
560 | K | 60 | 0.796 | 2.1 | 8.5 | 120 |
680 | K | 55 | 0.796 | 1.95 | 9.4 | 113 |
820 | K | 55 | 0.796 | 1.85 | 10.5 | 105 |
1000 | K | 55 | 0.796 | 1.4 | 14 | 100 |
※ Test meter: L&Q HP4284A; Srf HM2770;
※ For special specifications please contact with us.
Inductance (μH) | Tolerance | Qmin | Test Fre. L,Q(MHz) | Self-resonant fre.(MHz min) | DC resistance ohm(max) | Rated current L,Q(MHz) |
470 | K | 60 | 0.796 | 1.9 | 7.7 | 126 |
560 | K | 50 | 0.796 | 1.8 | 8.5 | 120 |
680 | K | 55 | 0.796 | 1.5 | 9 | 113 |
820 | K | 45 | 0.796 | 1.2 | 10.5 | 105 |
1000 | K | 45 | 0.796 | 1 | 14 | 100 |
1200 | K | 40 | 0.252 | 0.95 | 16.9 | 95 |
1500 | K | 40 | 0.252 | 0.9 | 21.6 | 90 |
1800 | K | 40 | 0.252 | 0.85 | 24 | 85 |
2200 | K | 40 | 0.252 | 0.8 | 34.7 | 80 |
2700 | K | 40 | 0.252 | 0.75 | 40 | 75 |
3300 | K | 40 | 0.252 | 0.7 | 59.5 | 62 |
3900 | K | 40 | 0.252 | 0.65 | 66 | 59 |
4700 | K | 40 | 0.252 | 0.6 | 74.5 | 55 |
5600 | K | 30 | 0.252 | 0.5 | 80 | 40 |
6800 | K | 30 | 0.252 | 0.45 | 85 | 35 |
8200 | K | 30 | 0.252 | 0.4 | 95 | 30 |
10000 | K | 20 | 0.252 | 0.35 | 105 | 25 |
※ Test meter: L&Q HP4284A; Srf HM2770;
※ For special specifications please contact with us.
Inductance (μH) | Tolerance | Qmin | Test Fre. L,Q(MHz) | Self-resonant fre.(MHz min) | DC resistance ohm(max) | Rated current L,Q(MHz) |
1000 | K | 60 | 0.01 | 1 | 10.5 | 200 |
1500 | K | 75 | 0.01 | 1 | 12.5 | 150 |
1800 | K | 55 | 0.01 | 1 | 15.5 | 140 |
※This type of inductor used in "OSRAM" the company's low-power electronic ballasts, The core structure and material differences in the general inductance.
