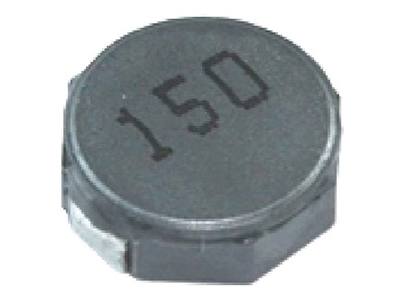

SMD 8.3mm power inductor has a maximum diameter of 8.3mm. With the adoption of flat coil structure and magnetic core allowing high saturation current, it ensures low copper loss.
Applications
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, portable
communication equipment, DC/DC converters, etc

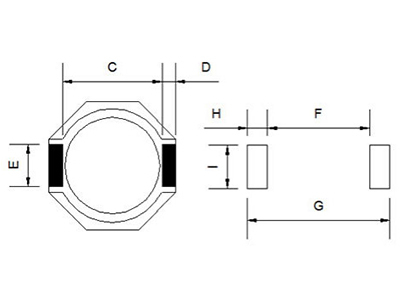

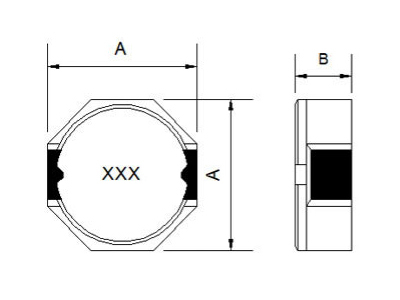

Type | Amax | Bmax | C | D | E | F | G | H | I |
CDRH83 | 8.30 | 3.0 | 5.90 | 1.20 | 2.50 | 6.10 | 10.10 | 2.00 | 2.80 |
CDRH84 | 8.30 | 4.0 | 5.90 | 1.20 | 2.50 | 6.10 | 10.10 | 2.00 | 2.80 |
CDRH85 | 8.30 | 4.5 | 5.90 | 1.20 | 2.50 | 6.10 | 10.10 | 2.00 | 2.80 |
CDRH86 | 8.30 | 6.0 | 5.90 | 1.20 | 2.50 | 6.10 | 10.10 | 2.00 | 2.80 |
Part Number | Inductance (uH)(※) | Tolerance | Rdc(ohm)Max | Rated Current Amp(※) |
CDRH85 | 1.8 | M | 16.0m | 5.15 |
CDRH84 | 2.2 | M | 20.0m | 5.4 |
CDRH83/85 | 2.5 | M | 26.0/20.0m | 4.13/5.0 |
CDRH83/85 | 3.3 | M | 32.5/22.0m | 3.7/4.5 |
CDRH83/84/85/86 | 3.9 | M | 58.5/29/30/16.3m | 3.0/4.3/4.0/4.1 |
CDRH83/85 | 4.7 | M | 62.0/33.0m | 2.6/3.87 |
CDRH86 | 5.0 | M | 17.5m | 3.8 |
CDRH86 | 6.2 | M | 20m | 3.3 |
CDRH83/84/85 | 6.8 | M | 85/36/44m | 2.5/3.0/3.1 |
CDRH83/84/85/86 | 10.0 | M | 91/49/69/25.6m | 2.5/2.7/2.5/2.6 |
CDRH83/84/85/86 | 15.0 | M | 137/75/75/363m | 1.61/2.3/2.35/2.3 |
CDRH83/84/85/86 | 22.0 | M | 195/109/82/453m | 1.4/1.88/1.9/1.7 |
CDRH83/84/85/86 | 33.0 | M | 319/163/125/65.3m | 1.16/1.52/1.62/1.50 |
CDRH83/84/85/86 | 47.0 | M | 423/211/176/90.5m | 0.9/1.28/1.35/1.20 |
CDRH83/84/85/86 | 68.0 | M | 560/304/247/130m | 0.75/1.10/1.20/1.0 |
CDRH83/84/85/86 | 100.0 | M | 793/416/377/175m | 0.58/0.88/1.02/0.80 |
CDRH83/84/85 | 120.0 | M | 935/495/430m | 0.51/0.83/0.90 |
CDRH83/84/85 | 150.0 | M | 1.09/0.60/0.52 | 0.47/0.78/0.83 |
CDRH83/84/85 | 180.0 | M | 1.65/0.78/0.63 | 0.42/0.70/0.78 |
CDRH83/84/85 | 220.0 | M | 1.82/0.91/0.79 | 0.4/0.64/0.69 |
CDRH84/85 | 270.0 | M | 1.1/0.96 | 0.55/0.62 |
CDRH85 | 330.0 | M | 1.23 | 0.54 |
※ The maximum rated current value is the DC current value that can meet the superimposed DC and temperature rise.
※ Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH)
Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH)
※ not all specifications are listed and you can contact us to customize the inductors not listed in the table.

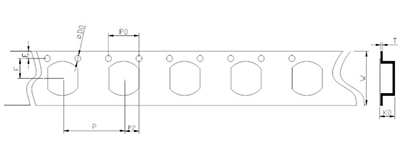

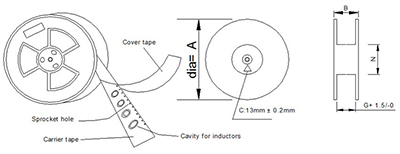

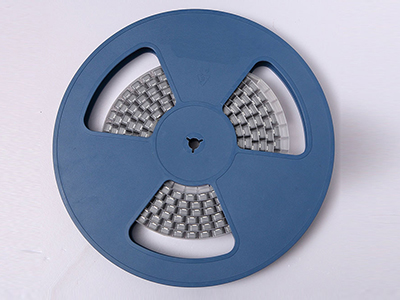

Real Packing of SMT InductorPacking Type | Reel Size(mm) | Tape Size(mm) | Q'ty, Pcs/reel | |||||||||||
A | B | G | N | E | F | D0 | P | P0 | P2 | W | T | K0 | ||
LSMT-01 | 178 | 11 | 8.5 | 60 | 1.75 | 3.5 | 1.5 | 4 | 4 | 2 | 8 | 0.25 | 2.1 | 2000 |
2 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 1.7 | 1000 |
3 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 2.1 | 1000 |
4 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 3 | 2000 |
5 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 2.4 | 2000 |
6 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.35 | 5.5 | 2000 |
7 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 3.5 | 1500 |
8 | 330 | 21 | 16.5 | 100 | 1.75 | 11.5 | 1.5 | 12 | 4 | 2 | 24 | 0.4 | 5.9 | 1000 |
9 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 4 | 1000 |
10 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.2 | 1000 |
11 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.8 | 500 |
12 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 5.2 | 500 |
13 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 6 | 500 |
14 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 8.2 | 500 |
Besides the power inductors shown above, we also provide other types of inductors listed below. We have over 30 years in making electronic components for printed circuit boards, with other products like resistors, electrical transformers and fuses. There are many models of products available with custom made services.
