Reel Packaging of SMT Inductor

Few magnetic devices are applicable to surface-mount technology (SMT). But Southern Group can provide the real packing of SMT inductor for SMT. And we have fully considered the required foot print, power density and cost.

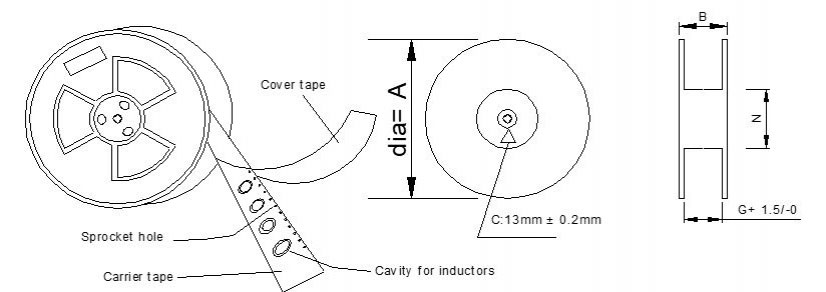

Tape and Reel Dimensions:(unit:mm)
Tape  Dimensions
Reel Packaging of SMT Inductor
Surface Mounting Type, Reel/Tape List
Packing Type Reel Size(mm) Tape Size(mm) Q'ty, Pcs/reel
A B G N E F D0 P P0 P2 W T K0
LSMT-01 178 11 8.5 60 1.75 3.5 1.5 4 4 2 8 0.25 2.1 2000
02 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.30 1.7 1000
03 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.30 2.1 1000
04 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 3.0 2000
05 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 2.4 2000
06 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.35 5.5 2000
07 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.30 3.5 1500
08 330 21 16.5 100 1.75 11.5 1.5 12 4 2 24 0.40 5.9 1000
09 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.30 4.0 1000
10 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.30 4.2 1000
11 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.30 4.8 500
12 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.30 5.2 500
13 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.30 6.0 500
14 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.30 8.2 500

Besides the power inductors shown above, we also provide other types of inductors listed below. We have over 30 years in making electronic components for printed circuit boards, with other products like resistors, electrical transformers and fuses. There are many models of products available with custom made services.
