SMD 6.5mm 7.5mm Shielded Power Inductor

  • SMD 6.5mm 7.5mm Shielded Power Inductor
  • SMD 6.5mm 7.5mm Shielded Power Inductor
  • SMD 6.5mm 7.5mm Shielded Power Inductor

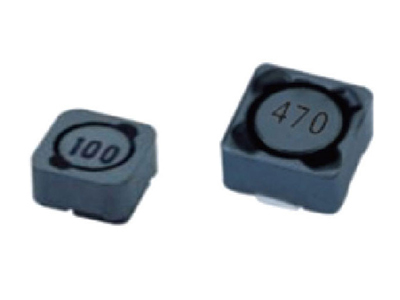

Here is the SMD 6.5mm 7.5mm shielded power inductor, of square shape. The flat structure helps to save a lot of space for you.

Applications
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, portable communication equipment, DC/DC converters, etc

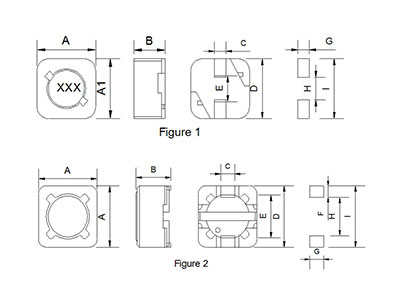

Shapes and Dimensions (Unit:mm)
SMD 6.5mm 7.5mm Shielded Power Inductor
Type Amax A1max Bmax C D E F G H I Figure
CDRH62 6.5 6.2 3.0 1.50 6.0 2.8 -- 2.50 4.00 8.10 1
CDRH64 6.5 6.2 5.0 1.50 6.0 2.8 -- 2.50 4.00 8.10 1
CDRH73 7.5 --- 3.40 1.80 7.20 5.4 1.5 2.20 4.80 7.80 2
CDRH74 7.5 --- 4.50 1.80 7.20 5.4 1.5 2.20 4.80 7.80 2
Specification Table
Series: CDRH 62/64/73/74
Part Number Inductance (uH)(※) Tolerance Rdc(ohm)Max Rated Current Amp(※)
CDRH73/74 1.0 M 403/20.0m 4.0/5.0
CDRH74 1.5 M 20.8m 4.60
CDRH73/74 2.2 M 553/24.7 m 3.5/4.4
CDRH62 33 M 68m 1.95
CDRH74 3.9 M 32.5m 3.30
CDRH62/73/74 4.7 M 80/43/39m 1.65/2.7/3.05
CDRH62 5.6 M 96m 1.40
CDRH62/74 6.8 M 100/45.5m 1.33/2.90
CDRH62 8.2 M 102m 1.14
CDRH62/64/73/74 10.0 M 150/120/119/65m 1.10/1.35/1.7/2.0
CDRH62/64/73/74 12.0 M 200/130/136/71m 1.0/1.22/1.6/1.9
CDRH62/64/73/74 15.0 M 230/180/124/78m 0.9/1.1/1.4/1.7
CDRH62/64/73/74 18.0 M 270/240/194/110m 0.8/1.02/13/1.6
CDRH62/64/73/74 22.0 M 340/270/195/126m 0.74/0.91/1.2/1.4
CDRH62/64/73/74 27.0 M 380/300/228/140m 0.66/0.82/1.0/1.3
CDRH62/64/73/74 33.0 M 450/330/260/177m 0.59/0.74/0.97/1.1
CDRH62/64/73/74 39.0 M 490/370/270/226m 0.54/0.69/0.94/1.0
CDRH62/64/73/74 47.0 M 690/520/310/260m 0.5/0.62/0.9/0.9
CDRH62/64/73/74 56.0 M 780/560/510/289m 0.46/0.58/0.8/0.82
CDRH62/64/73/74 68.0 M 1.07/0.63/0.59/034 0.42/0.51/0.72/0.78
CDRH62/64/73/74 82.0 M 1.21/0.71/0.68/036 0.38/0.46/0.6/0.7
CDRH62/64/73/74 100.0 M 1.39/1.03/0.73/0.4 1.1/0.83/0.54/0.68
CDRH62/64/73/74 120.0 M 1.9/1.15/0.91/0.55 0.31/0.38/0.51/0.65
CDRH62/64/73/74 150.0 M 2.18/1.68/1.04/0.69 0.28/0.35/0.44/0.59
CDRH62/64/73/74 180.0 M 2.77/1.87/1.24/0.77 0.26/0.32/0.38/0.57
CDRH62/64/73/74 220.0 M 3.12/2.08/1.69/1.24 0.23/0.29/0.35/0.47
CDRH62/64/73/74 270.0 M 438/237/1.95/130 0.22/0.26/0.34/0.45
CDRH62/64/73/74 330.0 M 4.94/2.67/2.08/1.52 0.19/0.23/0.30/0.43
CDRH64/73/74 390.0 M 2.94/3.12/1.77 0.22/0.28/0.375
CDRH64/73/74 470.0 M 3.93/3.64/2.60 0.2/0.26/0.33
CDRH64/73/74 560.0 M 5.43/4.16/2.80 0.18/0.25/0.29
CDRH64 680.0 M 7.32 0.17
CDRH64/74 820.0 M 8.24/3.25 0.15/0.24
CDRH64 1000.0 M 9.26 0.14

※ The maximum rated current value is the DC current value that can meet the superimposed DC and temperature rise.

※ Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH)

Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH)

※ Not all specifications are listed and you can contact us to customize the inductors not listed in the table.

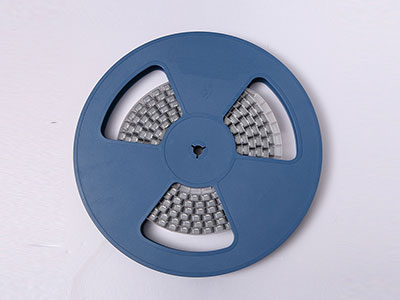

Real Packing of  SMT Inductor

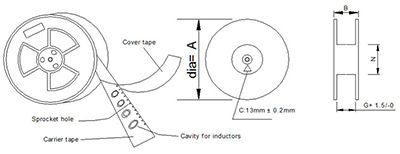

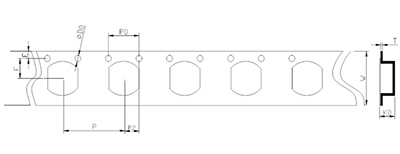

Tape and Reel Dimensions:(unit:mm)
  • SMD 6.5mm 7.5mm Shielded Power Inductor
  • SMD 6.5mm 7.5mm Shielded Power Inductor
Surface Mounting Type, Reel/Tape List:
Packing Type Reel Size(mm) Tape Size(mm) Q'ty, Pcs/reel
A B G N E F D0 P P0 P2 W T K0
LSMT-01 178 11 8.5 60 1.75 3.5 1.5 4 4 2 8 0.25 2.1 2000
2 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 1.7 1000
3 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 2.1 1000
4 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 3 2000
5 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 2.4 2000
6 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.35 5.5 2000
7 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 3.5 1500
8 330 21 16.5 100 1.75 11.5 1.5 12 4 2 24 0.4 5.9 1000
9 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 4 1000
10 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.2 1000
11 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.8 500
12 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 5.2 500
13 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 6 500
14 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 8.2 500

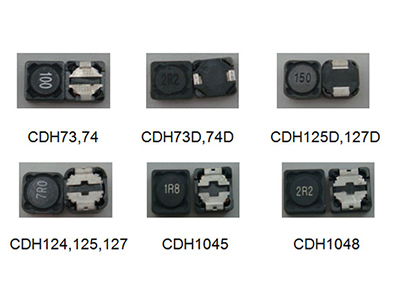

Besides the power inductors shown above, we also provide other types of inductors listed below. We have over 30 years in making electronic components for printed circuit boards, with other products like resistors, electrical transformers and fuses. There are many models of products available with custom made services.
