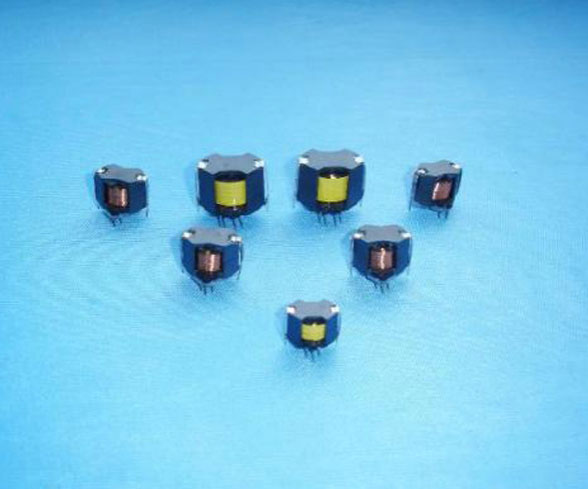

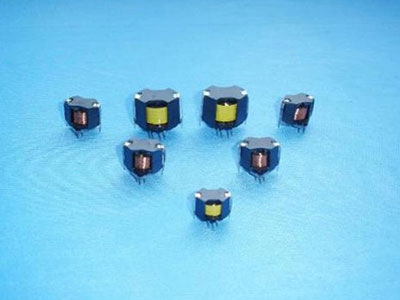

Switch Mode Power Transformer (RM, POT Core)

Switch Mode Power Transformer

The magnetic core of RM/POT power swtichmode transformer is wrapped by copper wire, featuring small radiation, good EMI performance, low loss, high efficiency, wide working frequency, strong anti-interference ability and good temperature control property. Usually it is used to manufacture communication transformer or small to medium sized high frequency transformer.

Parameters
  • Switch Mode Power Transformer
  • Switch Mode Power Transformer
  • Switch Mode Power Transformer
  • Switch Mode Power Transformer
Type Pin Number Dimensions (mm)
A B C1 C2 D+/-0.5 E1 E2 E3 F
RM-4 6 7.8 13.5 1.8 3.6 4.2 7.2 10.8 12.6
RM-5 6 7.2 15.5 1.8 3.6 4.4 10.8 14.4 16
RM-6 6 13.5 18.5 1.8 3.6 4.7 14.4 18 20.7
RM-6-1 8 12.8 18.5 15.2 4.2 3.8 5.08 18.5
RM-8 12 12.1 23.5 3.6 7.2 5 14.4 18 21.6 24
RM-8-1 12 17.5 29.5 20.3 4.4 3.8 5.08 23.4
RM-10 12 13.4 28.5 3.6 7.2 4 18 21.6 28.1
RM-10-1 12 19.6 39.4 28 4.5 3.8 5.12 20 23.3
RM-12 12 17.7 38.5 3.6 10.8 6.3 21.5 28.7 35.9 38.5
RM-12-1 12 23.7 45.2 33 4.5 5.08 5.1 28.4
RM-14 12 29 48.4 35.6 4.8 5.08 7.62 31.4

We are an electronic transformer manufacturer with over 30 years of experience. We have provided large amounts of high frequency transformers for switch and charger manufacturers and we have many models to choose from and provide custom electronic transformers. Besides the transformers shown above, we also provide other electronic components like resistors and inductors that can be custom ordered.
