SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor

  • SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor
  • SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor
  • SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor

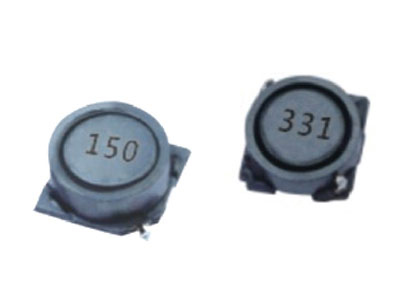

SMD 3.0mm 4.0mm 5.2mm 7mm power inductor is a high current SMD inductor, available in size of 3.0mm,4.0mm,5.2mm and 7mm.

Applications
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, portable communication equipment, DC/DC converters, etc

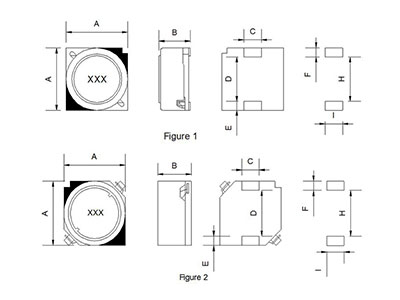

Shapes and dimensions (UNIT:mm)
SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor
Type Amax Bmax C D E F H I Firgre
BF6028 6.20 3.00 2.0 3.0 1.50 2.00 2.50 2.50 1
BF7025 7.20 2.80 2.0 4.0 1.50 2.00 3.50 2.50 2
BF7032 7.20 3.40 2.0 4.0 1.50 2.00 3.50 2.50 2
BF7045 7.20 4.80 2.0 4.0 2.00 2.50 3.50 2.50 2
BF1045 10.40 4.80 3.0 6.0 2.00 2.50 5.50 3.50 2
Specification Table

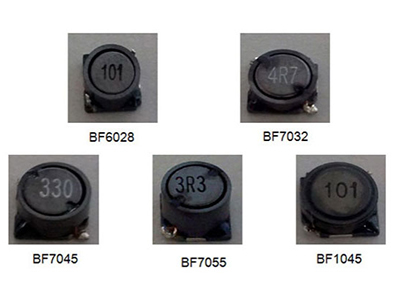

Series: BF6028/7025/7032/7045/1045
Part Number Inductance (uH) (※) Tolerance Rdc (ohm)Max Rated Current Amp(※)
BF7032/7045 1.0 M 13/15m 3.15/3.0
BF6028 1.2 M 21m 2.25
BF7025/7032 1.5 M 22/17m 2.50/2.88
BF7025/7045 1.8 M 26/18m 2.3Z2.6
BF7032/7045 2.2 M 21/20m 2.7Z2.4
BF6028/7025 2.5 M 24/30m 1.8/2.0
BF7025 3.3 M 35m 1.7
BF6028 3.9 M 34m 1.38
BF6028/7025/7032/7045 4.7 M 42/46/47/33m 1.3/1.3/2.0/2.0
BF6028 5.6 M 49m 1.1
BF6028/7025/7032 6.8 M 65/60/57m 1.0/1.1/1.8
BF6028/7025/7032/7045/1045 10.0 M 94/90/69/52/47m 0.81/1.05/1.35/1.7/2.5
BF7025/7032/7045 12.0 M 107/78/58m 0.85/1.25/1.55
BF6028/7025/7032/7045/1045 15.0 M 124/146/101/70/62m 0.7/0.78/1.1/1.4/2.2
BF7025/7032/7045 18.0 M 163/135/78m 0.68/1.0/1.3
BF6028/7025/7032/7045/1045 22.0 M 182/179/156/86/77m 0.55/0.63/0.9/1.2/1.9
BF7025/7032/7045 27.0 M 231/182/lllm 0.58/0.85/1.1
BF6028/7025/7032/7045/1045 33.0 M 254/273/208/125/105m 0.45/0.52/0.75/1.03/1.7
BF7025/7032/7045 39.0 M 309/234/137m 0.48/0.68/0.93
BF6028/7025/7032/7045/1045 47.0 M 338/364/299/195/130m 0.35/0.46/0.60/0.85/1.5
BF7025/7032/7045 56.0 M 403/332/208m 0.38/0.56/0.75
BF6028/7025/7032/7045/1045 68.0 M 507/507/436/254/182m 0.32/0.36/0.5/0.68/1.3
BF7025/7032/7045 82.0 M 611/514/273m 0.33/0.46/0.6
BF6028/7025/7032/7045/1045 100.0 M 897/754/592/319/260m 0.25/0.31/0.42/0.53/1.0
BF7025/7032/7045 120. M 0.86/0.75/0.43 0.29/0.4/0.45
BF6028/7025/7032/7045/1045 150.0 M 1.17/1.12/0.88/0.5/0.46 0.22/0.26/0.38/0.4/0.79
BF7025/7032/7045 180.0 M 1.29/0.98/0.72 0.23/0.36/0.38
BF6028/7025/7032/7045/1045 220.0 M 1.56/1.69/1.5/0.82/0.61 0.19/0.21/0.32/033/0.65
BF7025/7032/7045 270.0 M 2.25/1.69/0.9 0.18/0.29/0.3
BF6028/7025/7032/7045/1045 330.0 M 2.44/2.6/1.95/1.01/0.88 0.15/0.17/0.26/0.27/0.54
BF7025/7032/7045 390.0 M 2.93/2.25/1.37 0.15/0.24/0.26
BF6028/7025/7032/7045/1045 470.0 M 3.38/3.77/2.6/1.56/1.34 0.13/0.14/0.22/0.25/0.47
BF7025/7032/7045 560.0 M 4.16/3.62/1.76 0.13/0.20/0.23
BF6028/7025/7032/7045/1045 680.0 M 4.55/4.68/4.16/2.86/2.08 0.1/0.12/0.18/0.21/0.38
BF7025/7032/7045 820.0 M 6.24/5.46/3.25 0.11/0.16/0.19
BF6028/7025/7032/7045/1045 1000.0 M 7.02/7.41/6.37/3.77/3.64 0.08/0.1/0.15/0.17/0.29

※ The maximum rated current value is the DC current value that can meet the superimposed DC and temperature rise.

※ Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH)

Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH)

※ not all specifications are listed and you can contact us to customize the inductors not listed in the table.

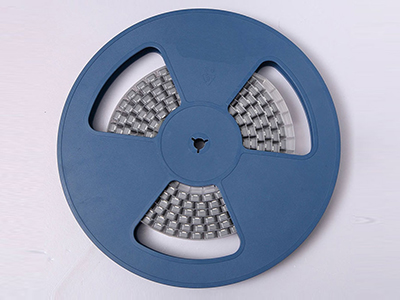

Real Packing of  SMT Inductor

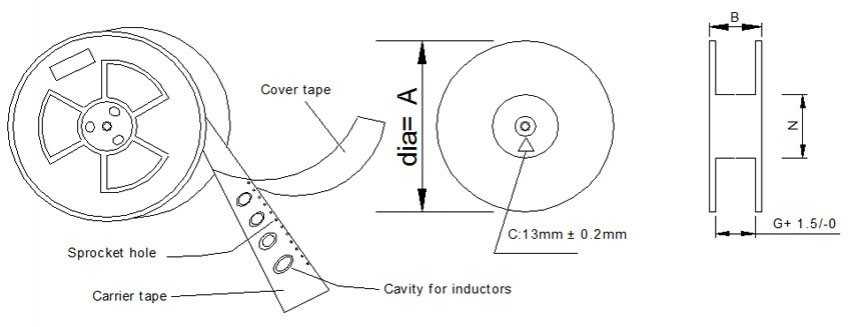

Tape and Reel Dimensions:(unit:mm)
SMD 3.0mm 4.0mm 5.2mm 7mm Power Inductor
Surface Mounting Type, Reel/Tape List
Packing Type Reel Size(mm) Tape Size(mm) Q'ty, Pcs/reel
A B G N E F D0 P P0 P2 W T K0
LSMT-01 178 11 8.5 60 1.75 3.5 1.5 4 4 2 8 0.25 2.1 2000
2 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 1.7 1000
3 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 2.1 1000
4 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 3 2000
5 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 2.4 2000
6 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.35 5.5 2000
7 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 3.5 1500
8 330 21 16.5 100 1.75 11.5 1.5 12 4 2 24 0.4 5.9 1000
9 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 4 1000
10 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.2 1000
11 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.8 500
12 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 5.2 500
13 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 6 500
14 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 8.2 500

** The packaging types are not filly listed above, the goods are packed according suitability principle when shipping. Thus maybe the goods packaging type is not in agreement with  the list.**

Besides the power inductors shown above, we also provide other types of inductors listed below. We have over 30 years in making electronic components for printed circuit boards, with other products like resistors, electrical transformers and fuses. There are many models of products available with custom made services.
