SMD10.5mm Power Inductor

  • SMD10.5mm Power Inductor
  • SMD10.5mm Power Inductor
  • SMD10.5mm Power Inductor

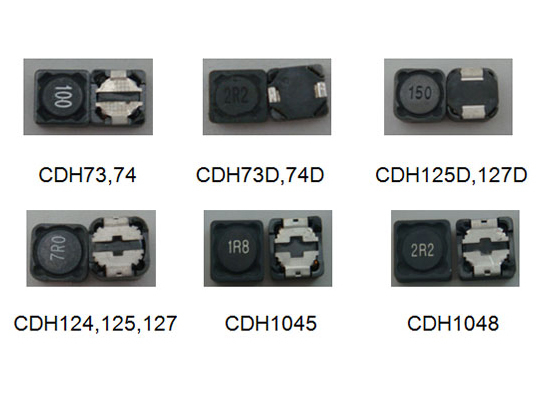

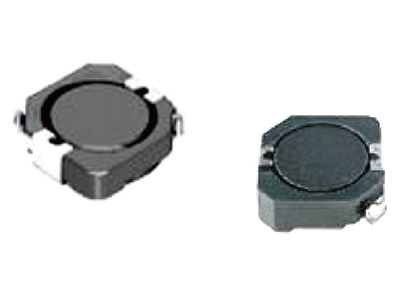

SMD 10.5mm power inductor has a maximum length of 10.5mm. The inductors listed here has a inductance ranging within 1.2μH-470μH. Other than the shown standard inductors, we can also offer custom power inductors to satisfy your demands.

Applications
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, portable communication equipment, DC/DC converters, etc

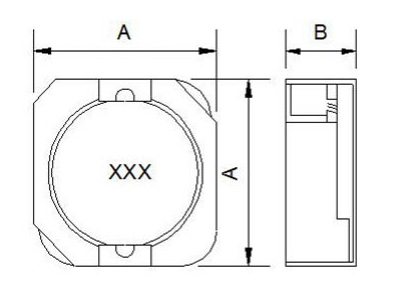

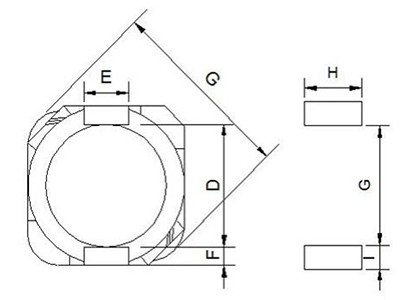

Shapes and Dimensions (Unit:mm)
  • SMD10.5mm Power Inductor
  • SMD10.5mm Power Inductor
Type Amax Bmax Cmax D E F G H I
CDRH103R 10.50 3.10 13.50 7.70 3.00 1.20 7.30 3.20 1.60
CDRH104R 10.50 4.00 13.50 7.70 3.00 1.20 7.30 3.20 1.60
CDRH105R 10.50 5.10 13.50 7.70 3.00 1.20 7.30 3.20 1.60
Series: CDRH103R/104R/105R
Part Number Inductance (uH)(※) Tolerance Rdc(ohm)Max Rated Current Amp(※)
CDRH103/104/105R 1.2 M 12/12/12m 4.8/5.4/8.3
CDRH105R 1.5 M 14m 8.3
CDRH103R 1.8 M 14m 4.5
CDRH104/105R 2.2 M 17/16m 4.95/7.50
CDRH103R 2.7 M 8m 4.1
CDRH104/105R 3.3 M 22/19.5m 4.35/6.50
CDRH103/104R 3.9 M 22/26m 3.76/4.05
CDRH105R 4.7 M 28m 5.5
CDRH104/105R 5.6 M 33/30m 3.8/4.5
CDRH103/105R 6.8 M 36/36m 3.10/4.90
CDRH103R 8.2 M 42m 3.0
CDRH103/104/105R 10.0 M 52/60/51m 2.8/3.15/4.0
CDRH103/104/105R 15.0 M 62/78/57m 2.1/2.9/3.3
CDRH105R 18.0 M 59m 3.10
CDRH103/104/105R 22.0 M 91/107/82m 1.8/2.5/2.9
CDRH103/104/105R 33.0 M 150/133/95m 1.53/2.0/2.6
CDRH103/104/105R 47.0 M 208/241/183m 1.34/1.80/2.0
CDRH103/104/105R 56.0 M 228/260/205m 1.19/1.62/1.80
CDRH103/104/105R 68.0 M 289/338/234m 1.13/1.35/1.60
CDRH103/104/105R 82.0 M 312/384/247m 1.04/1.26/1.40
CDRH103/104/105R 100.0 M 377/429/325m 0.96/1.17/1.35
CDRH103R 120.0 M 499m 0.88
CDRH103/104/105R 150.0 M 607/611/403iii 0.75/1.05/1.10
CDRH103/105R 180.0 M 676/527m 0.69/1.0
CDRH103/104/105R 220.0 M 826/939/658m 0.67/0.90/0.94
CDRH103/104R 270.0 M 933/1170m 0.58/0.72
CDRH103/104/105R 330.0 M 1.14/1.30/0.78 0.51/0.53/0.60
CDRH103/104R 390.0 M 1.43/1.56 0.49/0.45
CDRH103/104/105R 470.0 M 1.61/1.76/1.30 0.45/0.41/0.54

※ The maximum rated current value is the DC current value that can meet the superimposed DC and temperature rise.

※ Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH)

    Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH)

※ Not all specifications are listed and you can contact us to customize the inductors not listed in the table.

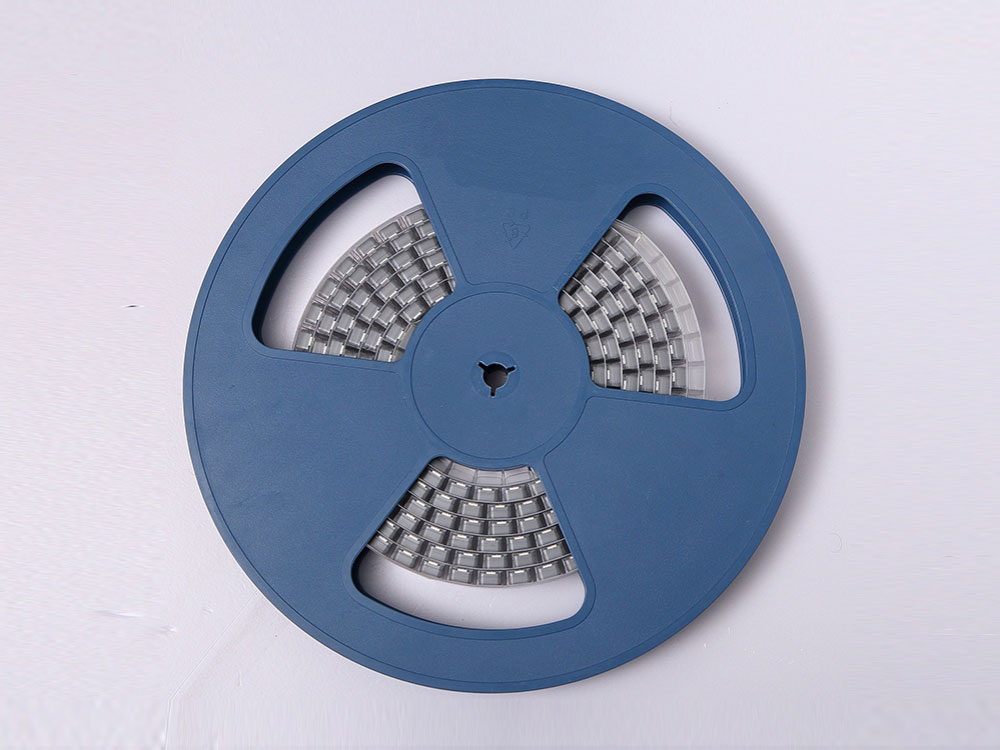

Real Packing of  SMT Inductor

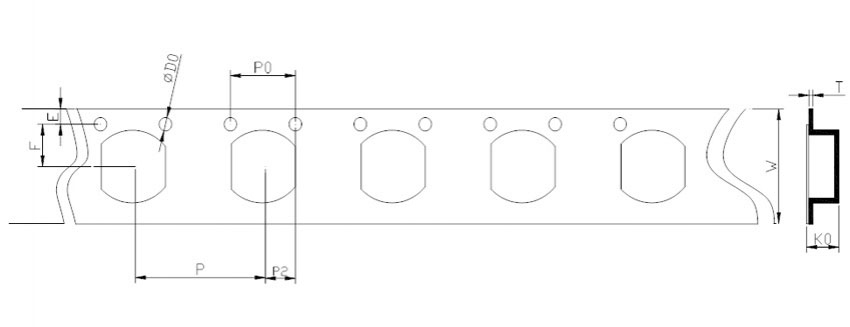

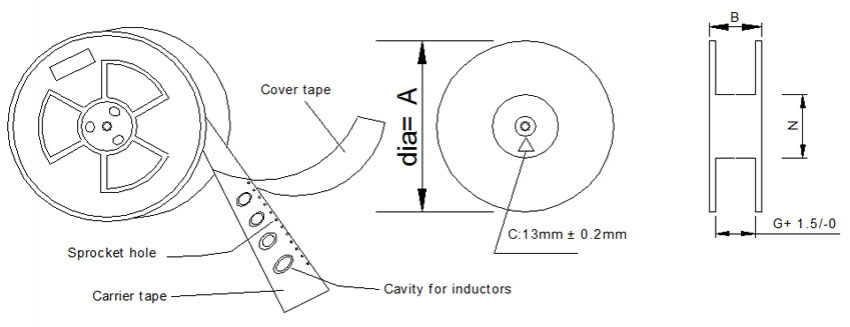

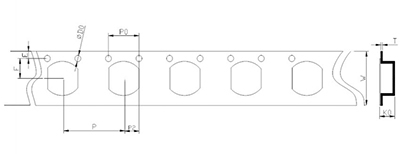

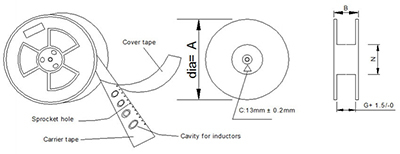

Tape and Reel Dimensions (Unit:mm)
  • SMD10.5mm Power Inductor
  • SMD10.5mm Power Inductor
Surface Mounting Type, Reel/Tape List
Packing Type Reel Size(mm) Tape Size(mm) Q'ty, Pcs/reel
A B G N E F D0 P P0 P2 W T K0
LSMT-01 178 11 8.5 60 1.75 3.5 1.5 4 4 2 8 0.25 2.1 2000
2 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 1.7 1000
3 178 15 12.5 60 1.75 5.5 1.5 8 4 2 12 0.3 2.1 1000
4 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 3 2000
5 330 17 12.5 100 1.75 5.5 1.5 8 4 2 12 0.35 2.4 2000
6 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.35 5.5 2000
7 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 3.5 1500
8 330 21 16.5 100 1.75 11.5 1.5 12 4 2 24 0.4 5.9 1000
9 330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.3 4 1000
10 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.2 1000
11 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 4.8 500
12 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 5.2 500
13 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 6 500
14 330 29 24.5 100 1.75 11.5 1.5 16 4 2 24 0.3 8.2 500

Besides the power inductors shown above, we also provide other types of inductors listed below. We have over 30 years in making electronic components for printed circuit boards, with other products like resistors, electrical transformers and fuses. There are many models of products available with custom made services.
