Radial Fixed Inductor

  • Radial Fixed Inductor
  • Radial Fixed Inductor
  • Radial Fixed Inductor
  • Radial Fixed Inductor

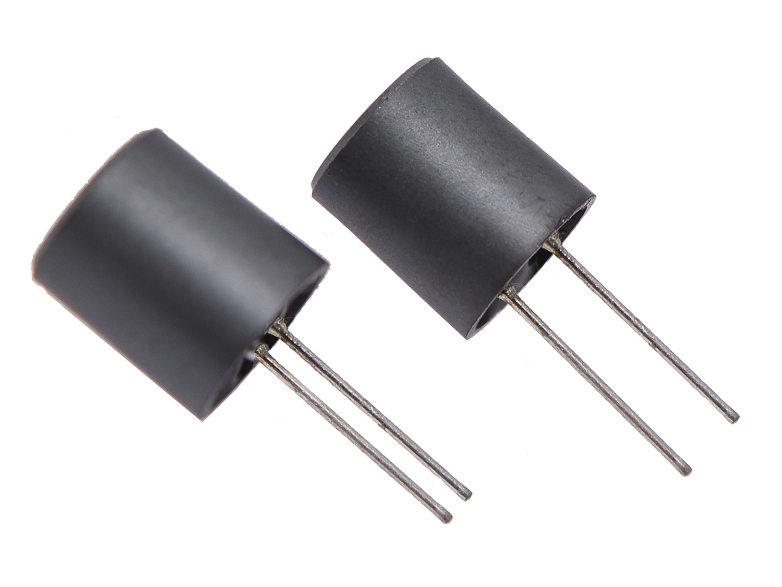

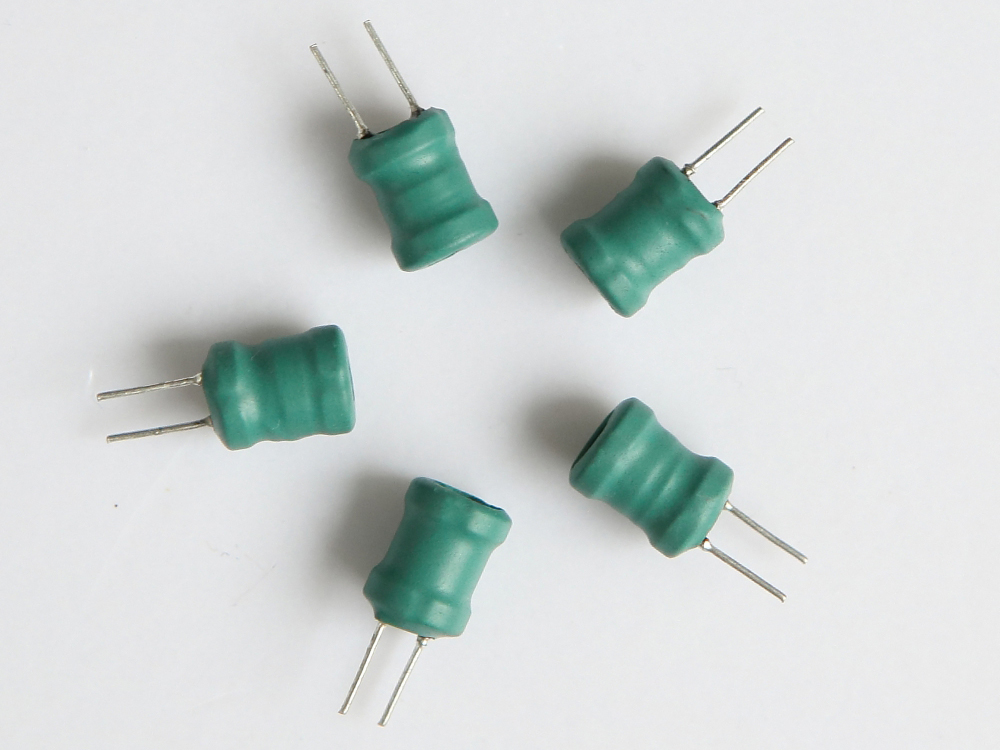

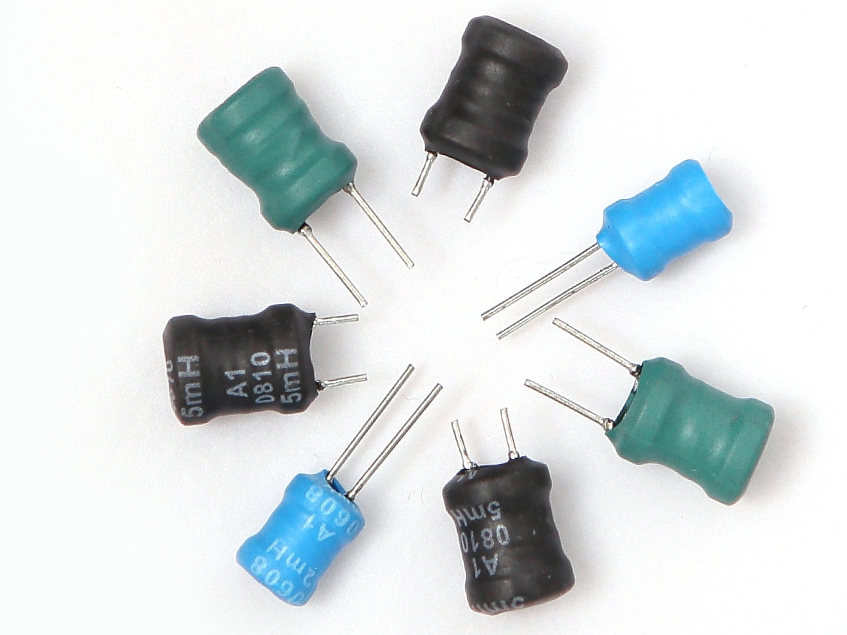

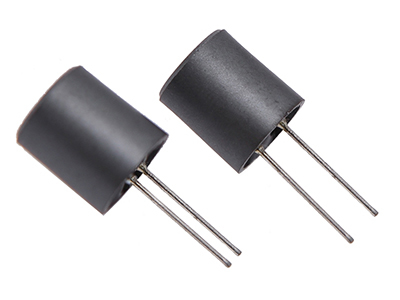

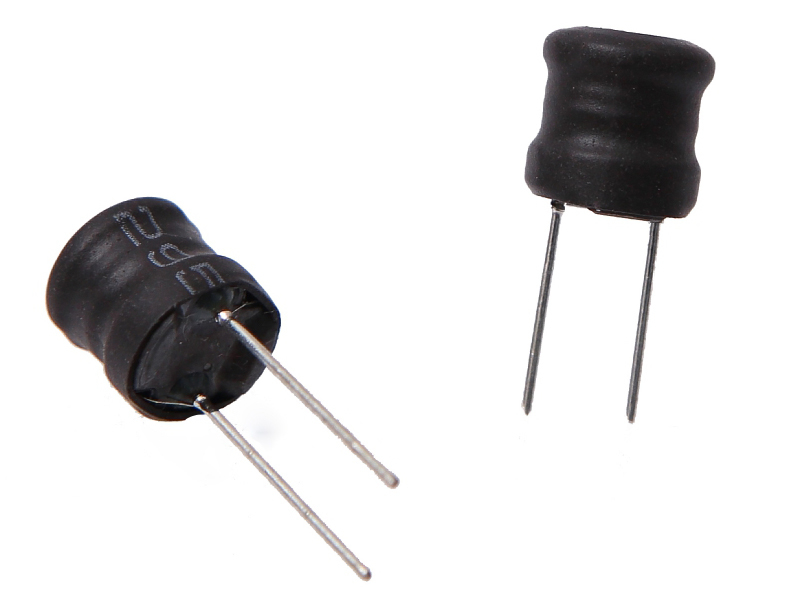

Radial fixed inductor features two leads, both on one side of the core. This makes it able to be installed vertically on the PCB.

Application
Televisions, VCR, OA equipment, PC, Other electronic equipment, etc.

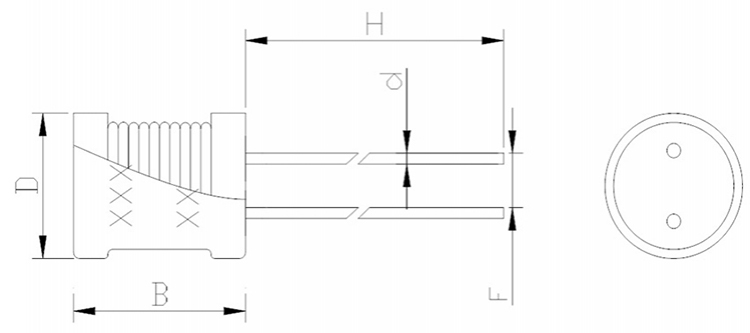

Dimensional drawing
Radial Fixed Inductor
Shapes and dimensions/ (Unit:mm)
Type D±1 Bmax F±0.5 d±0.1 H
LGB-X/S0406 4.5 8 2.5 0.5 10min
LGB-X/S0507 5.5 9 2.5 0.6
LGB-X/S0608 6.5 10 3.0
LGB-X/S0810 8.5 12 5.0
LGB-X/S0912 9.5 14 5.0 0.8
LGB-X/S1012 10.5 15 5.0
LGB-X/S1415 14.5 17 7.5

Special sizes, we can mold for production.

Parameters
LGB series LGB-X(S) 0406 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0406-1R0M 1.0 ±20% 80 7.96 200 0.10 1400
LGB-S/X0406-1R2M 1.2 70 170 0.13 1200
LGB-S/X0406-1R5M 1.5 70 140 0.15 1200
LGB-S/X0406-1R8M 1.8 70 130 0.17 1100
LGB-S/X0406-2R2M 2.2 70 120 0.20 1100
LGB-S/X0406-2R7M 2.7 70 110 0.22 1000
LGB-S/X0406-3R3M 3.3 70 90 0.24 1000
LGB-S/X0406-3R9M 3.9 70 70 0.26 1000
LGB-S/X0406-4R7M 4.7 70 55 0.28 800
LGB-S/X0406-5R6M 5.6 70 40 0.30 800
LGB-S/X0406-6R8M 6.8 70 35 0.35 800
LGB-S/X0406-8R2M 8.2 65 30 0.35 700
LGB-S/X0406-100K 10 ±10% 65 2.52 25 0.46 650
LGB-S/X0406-120K 12 65 20 0.48 600
LGB-S/X0406-150K 15 65 15 0.55 500
LGB-S/X0406-180K 18 65 15 0.65 500
LGB-S/X0406-220K 22 60 14 0.72 400
LGB-S/X0406-270K 27 60 13 0.78 400
LGB-S/X0406-330K 33 60 12 0.87 400
LGB-S/X0406-390K 39 60 11 0.90 400
LGB-S/X0406-470K 47 58 10 0.98 320
LGB-S/X0406-560K 56 55 9.0 1.50 300
LGB-S/X0406-680K 68 55 8.5 1.90 300
LGB-S/X0406-820K 82 53 8.0 2.50 300
LGB-S/X0406-101K 100 ±10% 50 0.796 7.0 3.00 200
LGB-S/X0406-121K 120 50 6.3 3.80 200
LGB-S/X0406-151K 150 50 5.7 4.50 200
LGB-S/X0406-181K 180 50 5.3 5.00 200
LGB-S/X0406-221K 220 50 5.0 5.80 200
LGB-S/X0406-271K 270 50 4.5 6.50 150
LGB-S/X0406-331K 330 50 4.0 7.00 150
LGB-S/X0406-391k 390 50 3.8 7.70 150
LGB-S/X0406-471k 470 50 3.5 8.00 120
LGB-S/X0406-561k 560 50 3.2 8.50 120
LGB-S/X0406-681k 680 50 3.0 9.50 120
LGB-S/X0406-821k 820 50 2.8 15.0 100
LGB-S/X0406-102K 1000 ±10% 50 0.252 2.5 17.0 100
LGB-S/X0406-122K 1200 50 2.3 20.0 80
LGB-S/X0406-152K 1500 50 2.1 22.0 80
LGB-S/X0406-182K 1800 50 1.8 25.0 70
LGB-S/X0406-222K 2200 50 1.6 26.0 60
LGB-S/X0406-272K 2700 45 1.36 40.0 40
LGB-S/X0406-332K 3300 45 1.27 50.0 30
LGB-S/X0406-392K 3900 45 1.20 55.0 30
LGB-S/X0406-472K 4700 45 1.06 60.0 30
LGB-S/X0406-562K 5600 45 1.02 65.0 30
LGB-S/X0406-682K 6800 45 0.96 72.0 30
LGB-S/X0406-822K 8200 45 0.93 80.0 20
LGB series LGB-X(S) 0507 type characteristics
Part number L (μH) TOL Qmin Fr ((MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0507-1R0M 1.0 ±20% 80 7.96 120 0.02 3500
LGB-S/X0507-1R2M 1.2 70 100 0.02 3100
LGB-S/X0507-1R5M 1.5 70 90 0.02 3000
LGB-S/X0507-1R8M 1.8 70 70 0.02 2800
LGB-S/X0507-2R2M 2.2 70 55 0.03 2500
LGB-S/X0507-2R7M 2.7 70 50 0.03 2200
LGB-S/X0507-3R3M 3.3 70 50 0.04 2000
LGB-S/X0507-3R9M 3.9 70 35 0.04 1900
LGB-S/X0507-4R7M 4.7 70 30 0.05 1800
LGB-S/X0507-5R6M 5.6 70 30 0.05 1700
LGB-S/X0507-RR8M 6.8 70 25 0.06 1300
LGB-S/X0507-8R2M 8.2 65 25 0.06 1100
LGB-S/X0507-100K 10 ±10% 65 2.52 22 0.08 1000
LGB-S/X0507-120K 12 65 20 0.10 950
LGB-S/X0507-150K 15 65 16 0.11 900
LGB-S/X0507-180K 18 50 14 0.11 800
LGB-S/X0507-220K 22 50 14 0.12 600
LGB-S/X0507-270K 27 50 12 0.14 550
LGB-S/X0507-330K 33 50 10 0.16 500
LGB-S/X0507-390K 39 45 9.0 0.18 500
LGB-S/X0507-470K 47 45 9.0 0.20 450
LGB-S/X0507-560K 56 35 8.0 0.22 450
LGB-S/X0507-680K 68 35 8.0 0.30 400
LGB-S/X0507-820K 82 35 7.0 0.34 400
LGB-S/X0507-101K 100 ±10% 30 0.796 6.0 0.36 350
LGB-S/X0507-121K 120 30 5.5 0.44 300
LGB-S/X0507-151K 150 30 4.5 0.52 300
LGB-S/X0507-181K 180 30 3.5 0.65 250
LGB-S/X0507-221K 220 25 4.0 0.75 240
LGB-S/X0507-271K 270 25 3.5 1.00 200
LGB-S/X0507-331K 330 25 3.0 1.3 180
LGB-S/X0507-391k 390 25 2.7 1.4 160
LGB-S/X0507-471k 470 25 2.5 1.6 160
LGB-S/X0507-561k 560 25 2.4 2.0 120
LGB-S/X0507-681k 680 25 2.2 2.3 140
LGB-S/X0507-821k 820 25 2.0 2.7 130
LGB-S/X0507-102K 1000 ±10% 50 0.252 2.2 3.1 120
LGB-S/X0507-122K 1200 50 1.5 4.6 110
LGB-S/X0507-152K 1500 50 1.3 5.3 100
LGB-S/X0507-182K 1800 50 1.2 6.2 90
LGB-S/X0507-222K 2200 ±10% 50 0.252 1.1 6.8 80
LGB-S/X0507-272K 2700 45 1.0 10 60
LGB-S/X0507-332K 3300 45 0.95 12 60
LGB-S/X0507-392K 3900 45 0.90 13 55
LGB-S/X0507-472K 4700 45 0.90 15 55
LGB-S/X0507-562K 5600 45 0.80 22 50
LGB-S/X0507-682K 6800 45 0.75 25 45
LGB-S/X0507-822K 8200 45 0.70 28 45
LGB series LGB-X(S) 0608 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0608-1R0M 1.0 ±20% 85 7.96 100 0.02 4400
LGB-S/X0608-1R2M 1.2 85 90 0.02 4000
LGB-S/X0608- 1R5M 1.5 85 80 0.03 3560
LGB-S/X0608-1R8M 1.8 80 65 0.04 3500
LGB-S/X0608-2R2M 2.2 80 55 0.05 3000
LGB-S/X0608-2R7M 2.7 80 50 0.06 2800
LGB-S/X0608-3R3M 3.3 75 40 0.06 2500
LGB-S/X0608-3R9M 3.9 75 38 0.07 2300
LGB-S/X0608-4R7M 4.7 75 36 0.07 2000
LGB-S/X0608-5R6M 5.6 70 35 0.075 1800
LGB-S/X0608-6R8M 6.8 70 30 0.075 1500
LGB-S/X0608-8R2M 8.2 70 25 0.08 1400
LGB-S/X0608-100K 10 ±10% 25 2.52 16 0.09 1300
LGB-S/X0608-120K 12 25 15 0.10 1100
LGB-S/X0608-150K 15 25 13 0.11 1050
LGB-S/X0608-180K 18 25 12 0.12 1000
LGB-S/X0608-220K 22 25 11 0.12 960
LGB-S/X0608-270K 27 25 10 0.17 920
LGB-S/X0608-330K 33 25 8.8 0.19 880
LGB-S/X0608-390K 39 20 8.4 0.22 860
LGB-S/X0608-470K 47 20 8.2 0.23 830
LGB-S/X0608-560K 56 20 7.9 0.29 810
LGB-S/X0608-680K 68 20 7.0 0.37 750
LGB-S/X0608-820K 82 20 6.5 0.39 740
LGB-S/X0608-101K 100 ±10% 30 0.796 5.7 0.44 710
LGB-S/X0608-121K 120 30 5.2 0.64 680
LGB-S/X0608-151K 150 30 4.7 0.73 600
LGB-S/X0608-181K 180 35 4.2 0.82 540
LGB-S/X0608-221K 220 35 3.7 0.92 450
LGB-S/X0608-271K 270 35 3.5 1.3 420
LGB-S/X0608-331K 330 35 3.2 1.5 400
LGB-S/X0608-391K 390 40 2.9 1.8 370
LGB-S/X0608-471K 470 40 2.4 2.3 340
LGB-S/X0608-561K 560 40 2.2 3.0 280
LGB-S/X0608-681K 680 40 2.0 3.25 250
LGB-S/X0608-821K 820 40 1.6 4.16 230
LGB-S/X0608-102K 1000 80 1.5 4.55 210
LGB-S/X0608-122K 1200 80 1.4 5.20 200
LGB series LGB-X(S)0608 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0608-152K 1500 ±10% 75 0.796 1.3 6.54 150
LGB-S/X0608-182K 1800 75 1.2 7.54 140
LGB-S/X0608-222K 2200 75 1.1 8.32 130
LGB-S/X0608-272K 2700 75 1.0 9.62 120
LGB-S/X0608-332K 3300 75 0.85 10.92 110
LGB-S/X0608-392K 3900 75 0.78 16.12 90
LGB-S/X0608-472K 4700 75 0.68 17.81 80
LGB-S/X0608-562K 5600 75 0.62 20.0 70
LGB-S/X0608-682K 6800 75 0.61 27.3 65
LGB-S/X0608-822K 8200 75 0.60 31.2 50
LGB-S/X0608-103K 10000 70 0.0796 0.48 39.0 45
LGB-S/X0608-123K 12000 70 0.44 42.9 40
LGB-S/X0608-153K 15000 70 0.35 65.0 35
LGB-S/X0608-183K 18000 70 0.30 72.8 30
LGB-S/X0608-223K 22000 70 0.28 82.55 30
LGB-S/X0608-273K 27000 70 0.25 95.42 25
LGB-S/X0608-333K 33000 70 0.23 135.2 25
LGB-S/X0608-393K 39000 70 0.20 154.7 20
LGB-S/X0608-473K 47000 70 0.16 172.9 20
LGB series LGB-X(S)1012 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X1012-4R7K 4.7 ±10% 5 0.01 0.05 4700
LGB-S/X1012-150K 15 5 0.05 3000
LGB-S/X1012-200K 20 5 0.042 2500
LGB-S/X1012-101K 100 5 0.18 1200
LGB-S/X1012-151K 150 5 0.27 1000
LGB-S/X1012-202K 2000 5 4.4 300
LGB-S/X1012-153K 15000 5 14.3 20
LGB series LGB-X(S)0810 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0810-1R0M 1.0 ±20% 90 7.96 100 0.02 3400
LGB-S/X0810-1R2M 1.2 90 90 0.02 3400
LGB-S/X0810-1R5M 1.5 95 80 0.02 3400
LGB-S/X0810-1R8M 1.8 95 75 0.03 3300
LGB-S/X0810-2R2M 2.2 100 70 0.03 3000
LGB-S/X0810-2R7M 2.7 100 60 0.04 3000
LGB-S/X0810-3R3M 3.3 100 56 0.04 3000
LGB-S/X0810-3R9M 3.9 100 52 0.05 2900
LGB-S/X0810-4R7M 4.7 100 30 0.05 2900
LGB-S/X0810-5R6M 5.6 100 30 0.06 2600
LGB-S/X0810-6R8M 6.8 90 20 0.06 2500
LGB-S/X0810-8R2M 8.2 80 17 0.06 2000
LGB-S/X0810-100K 10 ±10% 90 2.52 12 0.10 1600
LGB-S/X0810-120K 12 90 11 0.10 1400
LGB-S/X0810-150K 15 90 10 0.10 1300
LGB-S/X0810-180K 18 80 9.0 0.11 1200
LGB-S/X0810-220K 22 70 8.0 0.13 1100
LGB-S/X0810-270K 27 70 7.0 0.14 1000
LGB-S/X0810-330K 33 70 7.0 0.16 900
LGB-S/X0810-390K 39 70 6.0 0.16 800
LGB-S/X0810-470K 47 70 5.5 0.16 700
LGB-S/X0810-560K 56 60 5.5 0.22 700
LGB-S/X0810-680K 68 60 5.0 0.23 600
LGB-S/X0810-820K 82 60 4.5 0.27 500
LGB-S/X0810-101K 100 40 0.796 4.5 0.29 400
LGB-S/X0810-121K 120 40 4.5 0.33 400
LGB-S/X0810-151K 150 40 4.5 0.46 350
LGB-S/X0810-181K 180 40 4.0 0.51 350
LGB-S/X0810-221K 220 40 3.5 0.62 300
LGB-S/X0810-271K 270 30 3.0 0.65 250
LGB-S/X0810-331K 330 30 3.0 0.79 250
LGB-S/X0810-391K 390 30 2.5 0.91 200
LGB-S/X0810-471K 470 30 2.5 1.2 180
LGB-S/X0810-561K 560 30 2.0 1.2 160
LGB-S/X0810-681K 680 30 2.0 1.5 140
LGB-S/X0810-821K 820 25 2.0 1.7 140
LGB-S/X0810-102K 1000 50 0.252 2.0 2.0 120
LGB-S/X0810-122K 1200 45 1.5 2.3 100
LGB-S/X0810- 152K 1500 45 1.5 2.9 80
LGB-S/X0810- 182K 1800 45 1.5 3.5 70
LGB-S/X0810-222K 2200 50 1.0 4.2 60
LGB series LGB-X(S)0810 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0810-272K 2700 ±10% 50 0.252 1.0 5.1 60
LGB-S/X0810-332K 3300 50 0.9 6.1 50
LGB-S/X0810-392K 3900 50 0.8 7.8 50
LGB-S/X0810-472K 4700 55 0.7 11 45
LGB-S/X0810-562K 5600 55 0.6 11 45
LGB-S/X0810-682K 6800 55 0.6 14 40
LGB-S/X0810-822K 8200 60 0.6 15 35
LGB-S/X0810-103K 10000 100 0.0796 0.5 20 35
LGB-S/X0810-123K 12000 100 0.4 24 35
LGB-S/X0810-153K 15000 100 0.4 28 30
LGB-S/X0810-183K 18000 100 0.4 42 30
LGB-S/X0810-223K 22000 100 0.3 43 25
LGB-S/X0810-273K 27000 100 0.3 55 25
LGB-S/X0810-333K 33000 90 0.3 65 25
LGB-S/X0810-393K 39000 90 0.2 87 20
LGB-S/X0810-473K 47000 85 0.2 98 20
LGB-S/X0810-563K 56000 80 0.2 128 20
LGB-S/X0810-683K 68000 70 0.2 141 20
LGB-S/X0810-823K 82000 70 0.2 161 20
LGB-S/X0810-104K 100000 55 0.2 180 20
LGB series LGB-X(S)1415 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X1415-141K 135 ±10% 5 0.01 0.2 2500
LGB-S/X1415-101K 100 5 0.1 3000
LGB-S/X1415-301K 300 5 0.35 1500
LGB-S/X1415-371K 370 5 0.35 1200
LGB-S/X1415-451K 450 5 0.35 1000
LGB-S/X1415-551K 550 5 0.35 1000
LGB-S/X1415-561K 560 5 0.49 1000
LGB-S/X1415-801K 800 5 0.5 700
LGB-S/X1415-302K 3000 5 2.65 300
LGB-S/X1415-402K 4000 5 3.0 200
LGB series LGB-X(S)0912 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGB-S/X0912-100K 10 ±10% 110 2.52 24 0.04 2800
LGB-S/X0912-120K 12 110 18 0.04 2700
LGB-S/X0912-150K 15 110 11 0.05 2300
LGB-S/X0912-180K 18 90 8.4 0.06 2100
LGB-S/X0912-220K 22 90 8.2 0.07 2000
LGB-S/X0912-270K 27 90 7.1 0.10 1700
LGB-S/X0912-270K 33 90 7.1 0.12 1500
LGB-S/X0912-390K 39 80 6.9 0.12 1400
LGB-S/X0912-470K 47 70 6.0 0.13 1300
LGB-S/X0912-560K 56 70 5.7 0.14 1200
LGB-S/X0912-680K 68 60 5.4 0.15 1000
LGB-S/X0912-820K 82 50 4.6 0.16 900
LGB-S/X0912-101K 100 60 0.796 4.0 0.25 700
LGB-S/X0912-121K 120 60 3.6 0.28 700
LGB-S/X0912-151K 150 55 3.1 0.32 700
LGB-S/X0912-181K 180 55 2.8 0.47 600
LGB-S/X0912-221K 220 55 2.5 0.53 500
LGB-S/X0912-271K 270 50 2.4 0.60 450
LGB-S/X0912-331K 330 50 2.0 0.85 400
LGB-S/X0912-391K 390 50 2.0 0.95 350
LGB-S/X0912-471K 470 40 1.9 1.1 350
LGB-S/X0912-561K 560 30 1.8 1.2 300
LGB-S/X0912-681K 68 30 1.7 1.3 250
LGB-S/X0912-821K 820 30 1.5 1.4 200
LGB-S/X0912-102K 1000 70 0.252 1.1 2.0 200
LGB-S/X0912-122K 1200 70 1.0 2.3 180
LGB-S/X0912-152K 1500 70 1.0 2.9 150
LGB-S/X0912-182K 1800 70 0.9 3.3 120
LGB-S/X0912-222K 2200 70 0.7 4.5 110
LGB-S/X0912-272K 2700 70 0.7 5.5 80
LGB-S/X0912-332K 3300 60 0.6 5.7 80
LGB-S/X0912-392K 3900 60 0.6 6.5 60
LGB-S/X0912-472K 4700 60 0.6 7.2 180
LGB-S/X0912-562K 5600 60 0.5 9.5 50
LGB-S/X0912-682K 6800 60 0.5 11 50
LGB-S/X0912-822K 8200 50 0.4 13 50
LGB-S/X0912-103K 10000 100 0.0796 0.3 16 40
LGB-S/X0912-123K 12000 100 0.3 18 40
LGB-S/X0912-153K 15000 90 0.3 21 40
LGB-S/X0912-183K 18000 90 0.3 23 40

Above shown are our radial fixed inductors, we have over 30 years in making passive electronic components, and there are three types of fixed inductors we can customize for our customers.
Inquiry
Contact

Changzhou Southern Electronic Element Factory Co., Ltd.

Add.: West No.6 Building, Xinxin Intelligent Industrial Park, No.1 Xinchang Road, Wuxing Street, Zhonglou District, Changzhou City, Jiangsu Province, P. R. China.
Contact: Safe Liu
Fax: +86-0519-83295710
Mobile: +86-13806118535
Tel.: +86-0519-83976620
Email: liujindong@nfdq.cn
