Axial Fixed Inductor

  • Axial Fixed Inductor
  • Axial Fixed Inductor
  • Axial Fixed Inductor
  • Axial Fixed Inductor

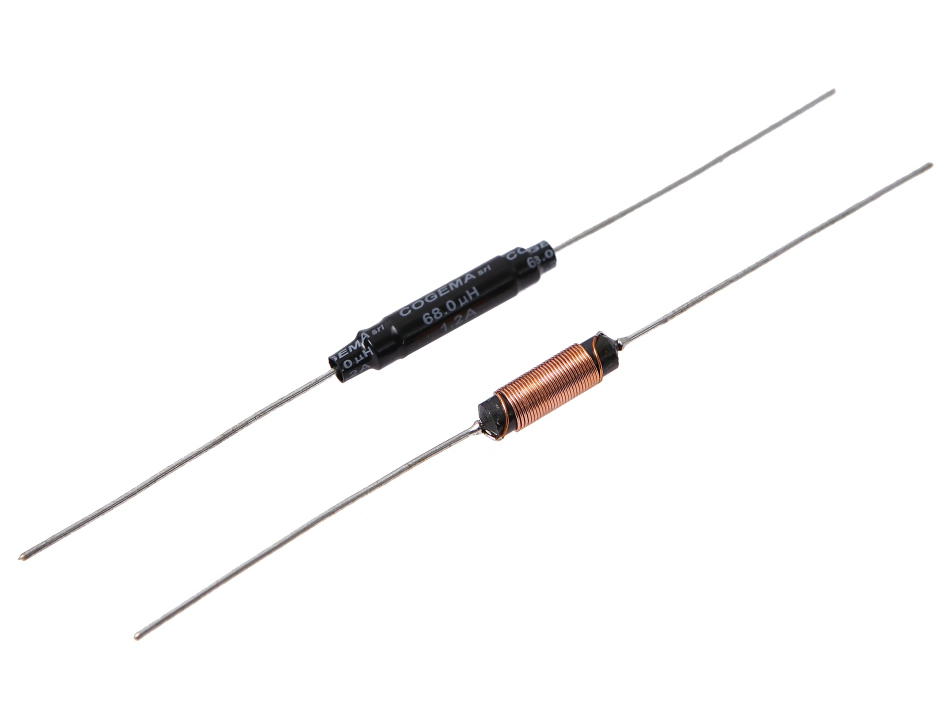

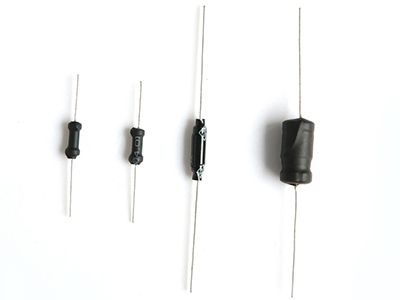

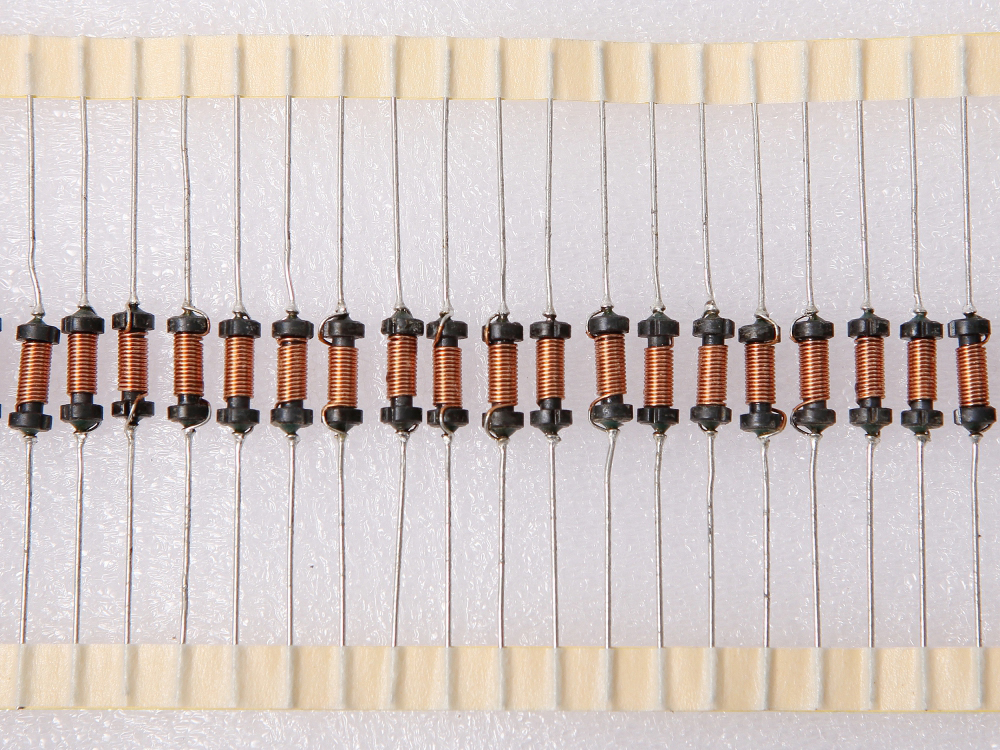

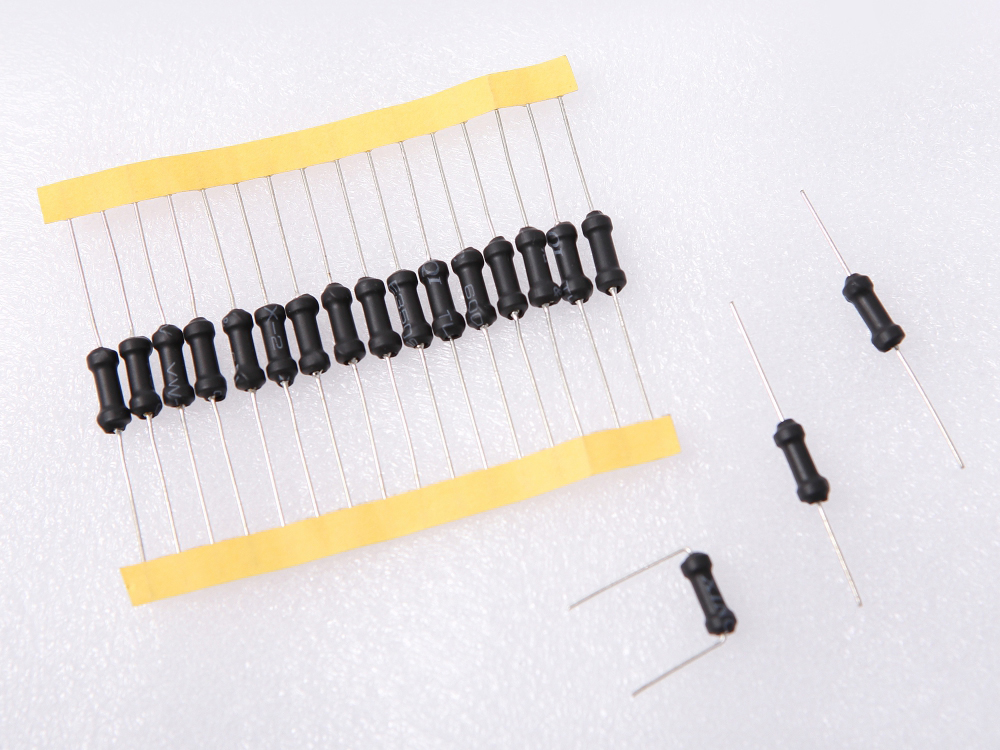

Axial fixed inductor has two lead wires, one at each end, allowing easy installation on PCB board.

Application
Televisions, VCR, OA equipment, PC, Other electronic equipment, etc.

Shapes and dimensions/ (UNIT:mm)
Type D±1 Bmax F±0.5 d±0.1 H
LGA-X/S0406 4.5 8 2.5 0.5 10min
LGA-X/S0507 5.5 9 2.5 0.6
LGA-X/S0608 6.5 10 3.0
LGA-X/S0810 8.5 12 5.0
LGA-X/S0912 9.5 14 5.0 0.8
LGA-X/S1012 10.5 15 5.0
LGA-X/S1415 14.5 17 7.5

Special sizes, we can mold production.

LGA Series LGA-X(S) 0406 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0406-1R0M 1.0 ±20% 80 7.96 200 0.10 1400
LGA-S/X0406-1R2M 1.2 70 170 0.13 1200
LGA-S/X0406-1R5M 1.5 70 140 0.15 1200
LGA-S/X0406-1R8M 1.8 70 130 0.17 1100
LGA-S/X0406-2R2M 2.2 70 120 0.20 1100
LGA-S/X0406-2R7M 2.7 70 110 0.22 1000
LGA-S/X0406-3R3M 3.3 70 90 0.24 1000
LGA-S/X0406-3R9M 3.9 70 70 0.26 1000
LGA-S/X0406-4R7M 4.7 70 55 0.28 800
LGA-S/X0406-5R6M 5.6 70 40 0.30 800
LGA-S/X0406-6R8M 6.8 70 35 0.35 800
LGA-S/X0406-8R2M 8.2 65 30 0.35 700
LGA-S/X0406-100K 10 ±10% 65 2.52 25 0.46 650
LGA-S/X0406-120K 12 65 20 0.48 600
LGA-S/X0406-150K 15 65 15 0.55 500
LGA-S/X0406-180K 18 65 15 0.65 500
LGA-S/X0406-220K 22 60 14 0.72 400
LGA-S/X0406-270K 27 60 13 0.78 400
LGA-S/X0406-330K 33 60 12 0.87 400
LGA-S/X0406-390K 39 60 11 0.90 400
LGA-S/X0406-470K 47 58 10 0.98 320
LGA-S/X0406-560K 56 55 9.0 1.50 300
LGA-S/X0406-680K 68 55 8.5 1.90 300
LGA-S/X0406-820K 82 53 8.0 2.50 300
LGA-S/X0406-101K 100 ±10% 50 0.796 7.0 3.00 200
LGA-S/X0406-121K 120 50 6.3 3.80 200
LGA-S/X0406-151K 150 50 5.7 4.50 200
LGA-S/X0406-181K 180 50 5.3 5.00 200
LGA-S/X0406-221K 220 50 5.0 5.80 200
LGA-S/X0406-271K 270 50 4.5 6.50 150
LGA-S/X0406-331K 330 50 4.0 7.00 150
LGA-S/X0406-391k 390 50 3.8 7.70 150
LGA-S/X0406-471k 470 50 3.5 8.00 120
LGA-S/X0406-561k 560 50 3.2 8.50 120
LGA-S/X0406-681k 680 50 3.0 9.50 120
LGA-S/X0406-821k 820 50 2.8 15.0 100
LGA-S/X0406-102K 1000 ±10% 50 0.252 2.5 17.0 100
LGA-S/X0406-122K 1200 50 2.3 20.0 80
LGA-S/X0406-152K 1500 50 2.1 22.0 80
LGA-S/X0406-182K 1800 50 1.8 25.0 70
LGA-S/X0406-222K 2200 50 1.6 26.0 60
LGA-S/X0406-272K 2700 45 1.36 40.0 40
LGA-S/X0406-332K 3300 45 1.27 50.0 30
LGA-S/X0406-392K 3900 45 1.20 55.0 30
LGA-S/X0406-472K 4700 45 1.06 60.0 30
LGA-S/X0406-562K 5600 45 1.02 65.0 30
LGA-S/X0406-682K 6800 45 0.96 72.0 30
LGA-S/X0406-822K 8200 45 0.93 80.0 20
LGA Series LGA-X(S)0507 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0507-1R0M 1.0 ±20% 80 7.96 120 0.02 3500
LGA-S/X0507-1R2M 1.2 70 100 0.02 3100
LGA-S/X0507-1R5M 1.5 70 90 0.02 3000
LGA-S/X0507-1R8M 1.8 70 70 0.02 2800
LGA-S/X0507-2R2M 2.2 70 55 0.03 2500
LGA-S/X0507-2R7M 2.7 70 50 0.03 2200
LGA-S/X0507-3R3M 3.3 70 50 0.04 2000
LGA-S/X0507-3R9M 3.9 70 35 0.04 1900
LGA-S/X0507-4R7M 4.7 70 30 0.05 1800
LGA-S/X0507-5R6M 5.6 70 30 0.05 1700
LGA-S/X0507-RR8M 6.8 70 25 0.06 1300
LGA-S/X0507-8R2M 8.2 65 25 0.06 1100
LGA-S/X0507-100K 10 ±10% 65 2.52 22 0.08 1000
LGA-S/X0507-120K 12 65 20 0.10 950
LGA-S/X0507-150K 15 65 16 0.11 900
LGA-S/X0507-180K 18 50 14 0.11 800
LGA-S/X0507-220K 22 50 14 0.12 600
LGA-S/X0507-270K 27 50 12 0.14 550
LGA-S/X0507-330K 33 50 10 0.16 500
LGA-S/X0507-390K 39 45 9.0 0.18 500
LGA-S/X0507-470K 47 45 9.0 0.20 450
LGA-S/X0507-560K 56 35 8.0 0.22 450
LGA-S/X0507-680K 68 35 8.0 0.30 400
LGA-S/X0507-820K 82 35 7.0 0.34 400
LGA-S/X0507-101K 100 ±10% 30 0.796 6.0 0.36 350
LGA-S/X0507-121K 120 30 5.5 0.44 300
LGA-S/X0507-151K 150 30 4.5 0.52 300
LGA-S/X0507-181K 180 30 3.5 0.65 250
LGA-S/X0507-221K 220 25 4.0 0.75 240
LGA-S/X0507-271K 270 25 3.5 1.00 200
LGA-S/X0507-331K 330 25 3.0 1.3 180
LGA-S/X0507-391k 390 25 2.7 1.4 160
LGA-S/X0507-471k 470 25 2.5 1.6 160
LGA-S/X0507-561k 560 25 2.4 2.0 120
LGA-S/X0507-681k 680 25 2.2 2.3 140
LGA-S/X0507-821k 820 25 2.0 2.7 130
LGA-S/X0507-102K 1000 ±10% 50 0.252 2.2 3.1 120
LGA-S/X0507-122K 1200 50 1.5 4.6 110
LGA-S/X0507-152K 1500 50 1.3 5.3 100
LGA-S/X0507-182K 1800 50 1.2 6.2 90
LGA-S/X0507-222K 2200 ±10% 50 0.252 1.1 6.8 80
LGA-S/X0507-272K 2700 45 1.0 10 60
LGA-S/X0507-332K 3300 45 0.95 12 60
LGA-S/X0507-392K 3900 45 0.90 13 55
LGA-S/X0507-472K 4700 45 0.90 15 55
LGA-S/X0507-562K 5600 45 0.80 22 50
LGA-S/X0507-682K 6800 45 0.75 25 45
LGA-S/X0507-822K 8200 45 0.70 28 45
LGA Series LGA-X(S)0608 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0608-1R0M 1.0 ±20% 85 7.96 100 0.02 4400
LGA-S/X0608-1R2M 1.2 85 90 0.02 4000
LGA-S/X0608- 1R5M 1.5 85 80 0.03 3560
LGA-S/X0608-1R8M 1.8 80 65 0.04 3500
LGA-S/X0608-2R2M 2.2 80 55 0.05 3000
LGA-S/X0608-2R7M 2.7 80 50 0.06 2800
LGA-S/X0608-3R3M 3.3 75 40 0.06 2500
LGA-S/X0608-3R9M 3.9 75 38 0.07 2300
LGA-S/X0608-4R7M 4.7 75 36 0.07 2000
LGA-S/X0608-5R6M 5.6 70 35 0.075 1800
LGA-S/X0608-6R8M 6.8 70 30 0.075 1500
LGA-S/X0608-8R2M 8.2 70 25 0.08 1400
LGA-S/X0608-100K 10 ±10% 25 2.52 16 0.09 1300
LGA-S/X0608-120K 12 25 15 0.10 1100
LGA-S/X0608-150K 15 25 13 0.11 1050
LGA-S/X0608-180K 18 25 12 0.12 1000
LGA-S/X0608-220K 22 25 11 0.12 960
LGA-S/X0608-270K 27 25 10 0.17 920
LGA-S/X0608-330K 33 25 8.8 0.19 880
LGA-S/X0608-390K 39 20 8.4 0.22 860
LGA-S/X0608-470K 47 20 8.2 0.23 830
LGA-S/X0608-560K 56 20 7.9 0.29 810
LGA-S/X0608-680K 68 20 7.0 0.37 750
LGA-S/X0608-820K 82 20 6.5 0.39 740
LGA-S/X0608-101K 100 ±10% 30 0.796 5.7 0.44 710
LGA-S/X0608-121K 120 30 5.2 0.64 680
LGA-S/X0608-151K 150 30 4.7 0.73 600
LGA-S/X0608-181K 180 35 4.2 0.82 540
LGA-S/X0608-221K 220 35 3.7 0.92 450
LGA-S/X0608-271K 270 35 3.5 1.3 420
LGA-S/X0608-331K 330 35 3.2 1.5 400
LGA-S/X0608-391K 390 40 2.9 1.8 370
LGA-S/X0608-471K 470 40 2.4 2.3 340
LGA-S/X0608-561K 560 40 2.2 3.0 280
LGA-S/X0608-681K 680 40 2.0 3.25 250
LGA-S/X0608-821K 820 40 1.6 4.16 230
LGA-S/X0608-102K 1000 80 1.5 4.55 210
LGA-S/X0608-122K 1200 80 1.4 5.20 200
LGA Series LGA-X(S)0608 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0608-152K 1500 ±10% 75 0.796 1.3 6.54 150
LGA-S/X0608-182K 1800 75 1.2 7.54 140
LGA-S/X0608-222K 2200 75 1.1 8.32 130
LGA-S/X0608-272K 2700 75 1.0 9.62 120
LGA-S/X0608-332K 3300 75 0.85 10.92 110
LGA-S/X0608-392K 3900 75 0.78 16.12 90
LGA-S/X0608-472K 4700 75 0.68 17.81 80
LGA-S/X0608-562K 5600 75 0.62 20.0 70
LGA-S/X0608-682K 6800 75 0.61 27.3 65
LGA-S/X0608-822K 8200 75 0.60 31.2 50
LGA-S/X0608-103K 10000 70 0.0796 0.48 39.0 45
LGA-S/X0608-123K 12000 70 0.44 42.9 40
LGA-S/X0608-153K 15000 70 0.35 65.0 35
LGA-S/X0608-183K 18000 70 0.30 72.8 30
LGA-S/X0608-223K 22000 70 0.28 82.55 30
LGA-S/X0608-273K 27000 70 0.25 95.42 25
LGA-S/X0608-333K 33000 70 0.23 135.2 25
LGA-S/X0608-393K 39000 70 0.20 154.7 20
LGA-S/X0608-473K 47000 70 0.16 172.9 20
LGA Series LGA-X(S)1012 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X1012-4R7K 4.7 ±10% 5 0.01 0.05 4700
LGA-S/X1012-150K 15 5 0.05 3000
LGA-S/X1012-200K 20 5 0.042 2500
LGA-S/X1012-101K 100 5 0.18 1200
LGA-S/X1012-151K 150 5 0.27 1000
LGA-S/X1012-202K 2000 5 4.4 300
LGA-S/X1012-153K 15000 5 14.3 20
LGA Series LGA-X(S)0810 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz） SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0810-1R0M 1.0 ±20% 90 7.96 100 0.02 3400
LGA-S/X0810-1R2M 1.2 90 90 0.02 3400
LGA-S/X0810-1R5M 1.5 95 80 0.02 3400
LGA-S/X0810-1R8M 1.8 95 75 0.03 3300
LGA-S/X0810-2R2M 2.2 100 70 0.03 3000
LGA-S/X0810-2R7M 2.7 100 60 0.04 3000
LGA-S/X0810-3R3M 3.3 100 56 0.04 3000
LGA-S/X0810-3R9M 3.9 100 52 0.05 2900
LGA-S/X0810-4R7M 4.7 100 30 0.05 2900
LGA-S/X0810-5R6M 5.6 100 30 0.06 2600
LGA-S/X0810-6R8M 6.8 90 20 0.06 2500
LGA-S/X0810-8R2M 8.2 80 17 0.06 2000
LGA-S/X0810-100K 10 ±10% 90 2.52 12 0.10 1600
LGA-S/X0810-120K 12 90 11 0.10 1400
LGA-S/X0810-150K 15 90 10 0.10 1300
LGA-S/X0810-180K 18 80 9.0 0.11 1200
LGA-S/X0810-220K 22 70 8.0 0.13 1100
LGA-S/X0810-270K 27 70 7.0 0.14 1000
LGA-S/X0810-330K 33 70 7.0 0.16 900
LGA-S/X0810-390K 39 70 6.0 0.16 800
LGA-S/X0810-470K 47 70 5.5 0.16 700
LGA-S/X0810-560K 56 60 5.5 0.22 700
LGA-S/X0810-680K 68 60 5.0 0.23 600
LGA-S/X0810-820K 82 60 4.5 0.27 500
LGA-S/X0810-101K 100 40 0.796 4.5 0.29 400
LGA-S/X0810-121K 120 40 4.5 0.33 400
LGA-S/X0810-151K 150 40 4.5 0.46 350
LGA-S/X0810-181K 180 40 4.0 0.51 350
LGA-S/X0810-221K 220 40 3.5 0.62 300
LGA-S/X0810-271K 270 30 3.0 0.65 250
LGA-S/X0810-331K 330 30 3.0 0.79 250
LGA-S/X0810-391K 390 30 2.5 0.91 200
LGA-S/X0810-471K 470 30 2.5 1.2 180
LGA-S/X0810-561K 560 30 2.0 1.2 160
LGA-S/X0810-681K 680 30 2.0 1.5 140
LGA-S/X0810-821K 820 25 2.0 1.7 140
LGA-S/X0810-102K 1000 50 0.252 2.0 2.0 120
LGA-S/X0810-122K 1200 45 1.5 2.3 100
LGA-S/X0810- 152K 1500 45 1.5 2.9 80
LGA-S/X0810- 182K 1800 45 1.5 3.5 70
LGA-S/X0810-222K 2200 50 1.0 4.2 60
LGA Series LGA-X(S)0810 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0810-272K 2700 ±10% 50 0.252 1.0 5.1 60
LGA-S/X0810-332K 3300 50 0.9 6.1 50
LGA-S/X0810-392K 3900 50 0.8 7.8 50
LGA-S/X0810-472K 4700 55 0.7 11 45
LGA-S/X0810-562K 5600 55 0.6 11 45
LGA-S/X0810-682K 6800 55 0.6 14 40
LGA-S/X0810-822K 8200 60 0.6 15 35
LGA-S/X0810-103K 10000 100 0.0796 0.5 20 35
LGA-S/X0810-123K 12000 100 0.4 24 35
LGA-S/X0810-153K 15000 100 0.4 28 30
LGA-S/X0810-183K 18000 100 0.4 42 30
LGA-S/X0810-223K 22000 100 0.3 43 25
LGA-S/X0810-273K 27000 100 0.3 55 25
LGA-S/X0810-333K 33000 90 0.3 65 25
LGA-S/X0810-393K 39000 90 0.2 87 20
LGA-S/X0810-473K 47000 85 0.2 98 20
LGA-S/X0810-563K 56000 80 0.2 128 20
LGA-S/X0810-683K 68000 70 0.2 141 20
LGA-S/X0810-823K 82000 70 0.2 161 20
LGA-S/X0810-104K 100000 55 0.2 180 20
LGA Series LGA-X(S)1415 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X1415-141K 135 ±10% 5 0.01 0.2 2500
LGA-S/X1415-101K 100 5 0.1 3000
LGA-S/X1415-301K 300 5 0.35 1500
LGA-S/X1415-371K 370 5 0.35 1200
LGA-S/X1415-451K 450 5 0.35 1000
LGA-S/X1415-551K 550 5 0.35 1000
LGA-S/X1415-561K 560 5 0.49 1000
LGA-S/X1415-801K 800 5 0.5 700
LGA-S/X1415-302K 3000 5 2.65 300
LGA-S/X1415-402K 4000 5 3.0 200
LGA Series LGA-X(S)0912 type characteristics
Part number L (μH) TOL Qmin Fr ( MHz) SRF (MHz) Rdc (Ω) Idc (mA)
LGA-S/X0912-100K 10 ±10% 110 2.52 24 0.04 2800
LGA-S/X0912-120K 12 110 18 0.04 2700
LGA-S/X0912-150K 15 110 11 0.05 2300
LGA-S/X0912-180K 18 90 8.4 0.06 2100
LGA-S/X0912-220K 22 90 8.2 0.07 2000
LGA-S/X0912-270K 27 90 7.1 0.10 1700
LGA-S/X0912-270K 33 90 7.1 0.12 1500
LGA-S/X0912-390K 39 80 6.9 0.12 1400
LGA-S/X0912-470K 47 70 6.0 0.13 1300
LGA-S/X0912-560K 56 70 5.7 0.14 1200
LGA-S/X0912-680K 68 60 5.4 0.15 1000
LGA-S/X0912-820K 82 50 4.6 0.16 900
LGA-S/X0912-101K 100 60 0.796 4.0 0.25 700
LGA-S/X0912-121K 120 60 3.6 0.28 700
LGA-S/X0912-151K 150 55 3.1 0.32 700
LGA-S/X0912-181K 180 55 2.8 0.47 600
LGA-S/X0912-221K 220 55 2.5 0.53 500
LGA-S/X0912-271K 270 50 2.4 0.60 450
LGA-S/X0912-331K 330 50 2.0 0.85 400
LGA-S/X0912-391K 390 50 2.0 0.95 350
LGA-S/X0912-471K 470 40 1.9 1.1 350
LGA-S/X0912-561K 560 30 1.8 1.2 300
LGA-S/X0912-681K 68 30 1.7 1.3 250
LGA-S/X0912-821K 820 30 1.5 1.4 200
LGA-S/X0912-102K 1000 70 0.252 1.1 2.0 200
LGA-S/X0912-122K 1200 70 1.0 2.3 180
LGA-S/X0912-152K 1500 70 1.0 2.9 150
LGA-S/X0912-182K 1800 70 0.9 3.3 120
LGA-S/X0912-222K 2200 70 0.7 4.5 110
LGA-S/X0912-272K 2700 70 0.7 5.5 80
LGA-S/X0912-332K 3300 60 0.6 5.7 80
LGA-S/X0912-392K 3900 60 0.6 6.5 60
LGA-S/X0912-472K 4700 60 0.6 7.2 180
LGA-S/X0912-562K 5600 60 0.5 9.5 50
LGA-S/X0912-682K 6800 60 0.5 11 50
LGA-S/X0912-822K 8200 50 0.4 13 50
LGA-S/X0912-103K 10000 100 0.0796 0.3 16 40
LGA-S/X0912-123K 12000 100 0.3 18 40
LGA-S/X0912-153K 15000 90 0.3 21 40
LGA-S/X0912-183K 18000 90 0.3 23 40

Above shown are our radial fixed inductors, we have over 30 years in making passive electronic components, and there are three types of fixed inductors we can customize for our customers.

Inquiry
Contact

Changzhou Southern Electronic Element Factory Co., Ltd.

Add.: West No.6 Building, Xinxin Intelligent Industrial Park, No.1 Xinchang Road, Wuxing Street, Zhonglou District, Changzhou City, Jiangsu Province, P. R. China.
Contact: Safe Liu
Fax: +86-0519-83295710
Mobile: +86-13806118535
Tel.: +86-0519-83976620
Email: liujindong@nfdq.cn
