Coating Wire Wound Resistor
Coating wire wound resistor is composed of circular ceramic resistor, with heat resisting material coated wound wire. Thus it is widely used in automotive electronics, household appliances, communication equipment, energy-saving lamps, automatic control device (like converter) and other industries.
Performance Of Coating Wire Wound Resister| Item | Test Method | Requirement | |
| Resistance Series, Tolerance | E24; ±5% ±10% | ||
| Solder Ability | 265±5℃, 2s+0.5s, Immersion height:1.5~2.0mm | 265±5℃; 2s+0.5s; 1.5-2.0mm | △R≤± (1%R+0.05Ω) No visible damage; Surface without solder>95% |
| Terminal Strength | 10N: 30±1.5s | 10N 30±1.5s | △R≤±(1%R+0.05Ω) No visible damage |
| Short Time Overload | 10x Rated power: 5s | 10x Rated power 5s | △R≤±(1%R+0.05Ω) |
| Resistance to Soldering Heat | 350℃±10℃; Immersion height:3~3.5mm | 350℃±10℃ 3-3.5mm | △R≤± (1%R+0.05Ω) No visible damage |
| Vibration | Min. (10-500Hz and 0.75mm, or 98m/s2 ) Direction: x、y and z, totally 6h | Min. (10-500Hz and 0.75mm, or 98m/s2 ) Direction: x、y and z, totally 6h | △R≤±(1%R+0.05Ω) No visible damage |
| Load Life Under Room Temperature | 1.5h-on and 0.5h-off : 1000h | 1.5h-on and 0.5h-off : 1000h | △R≤±(5%R+0.1Ω) |
| Moisture Resistance | 40℃； RH=90~95%: 96h | 40℃; RH: 90-95% ; 96h | △R≤±(5%R+0.1Ω) |

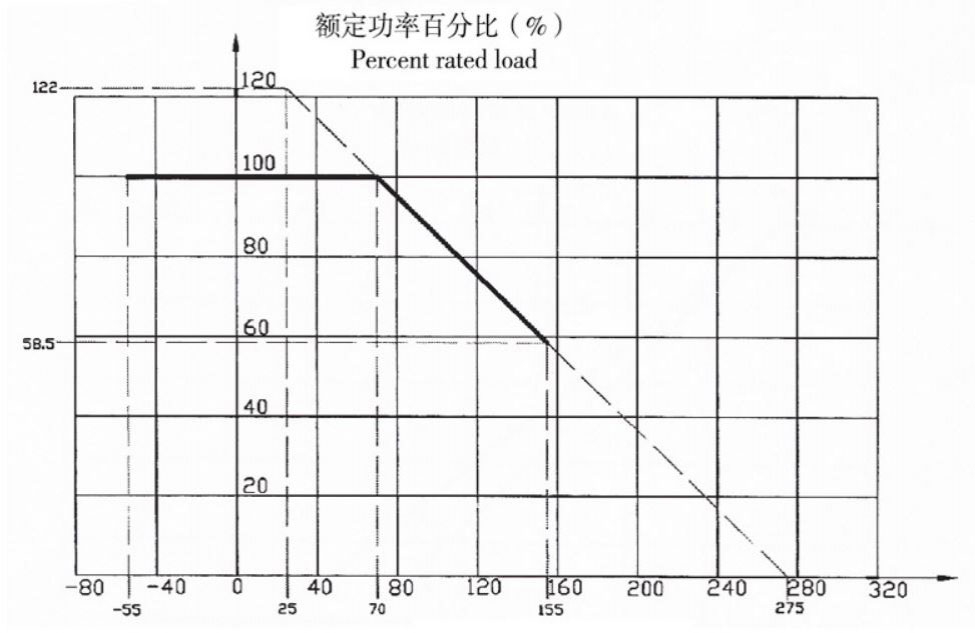

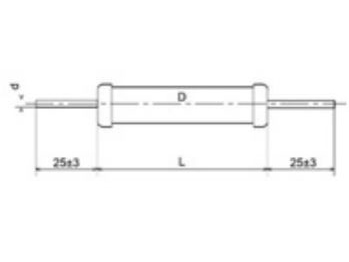

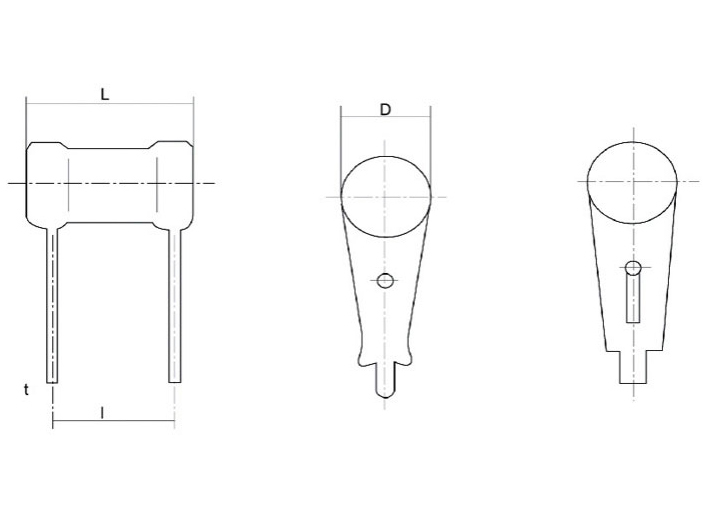

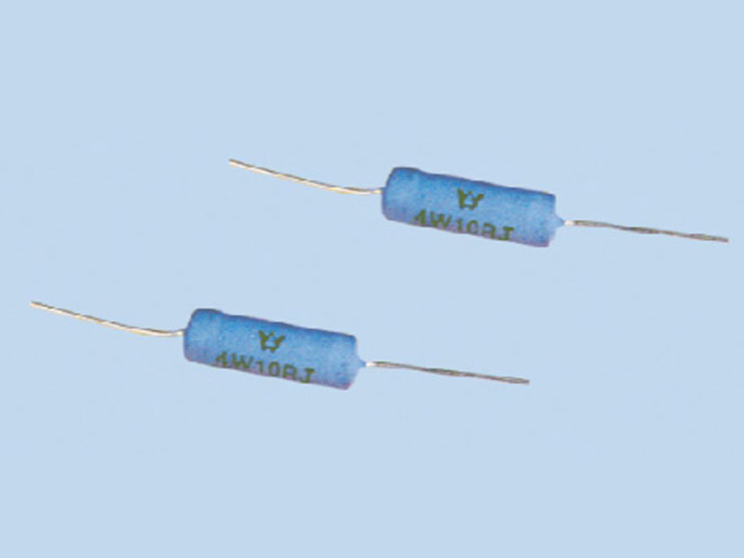

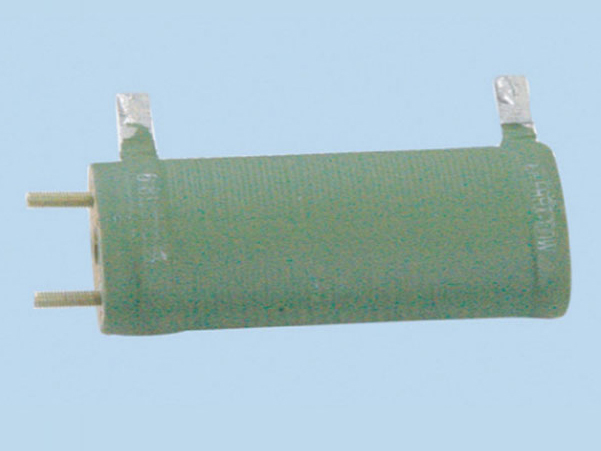

RX27-4HS / RX27-4HV
| Type | Rated Power (W) | Resistance Range( Ω) | Dimensions (mm) | ||
| L | D | D | |||
| RX21-0.5 | 0.5 | 0.10-560 | 10±1 | 3.5±0.5 | 0.6 |
| RX21-(1) | (1) | 0.1-1k | 14 ±1 | 33 ±0.5 | 0.8 |
| RX21-2 | 2 | 0.15-5.1k | 16±1 | 6±1 | 0.8 |
| RX21-4 | 4 | 0.15-10k | 26 ±2 | 9±1 | 0.8 |
| RX21-8 | 8 | 0.15-33k | 3412 | 10 ±1 | 1 |
| RX2-（12） | (12) | 1-33k | 46 ±2 | 10 ±1 | 1 |
| RX2t-（15） | (15) | 1»39k | 52 ±2 | 10±1 | 1 |
Nominal Resistance Allowable Deviation: ±2%(G);
±5%(J); ±10%(K)
The power in brackets belongs to a non-standard power series.

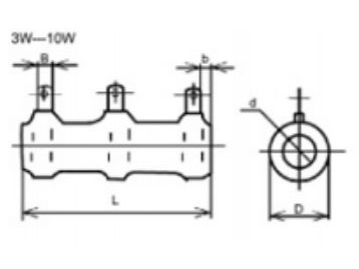

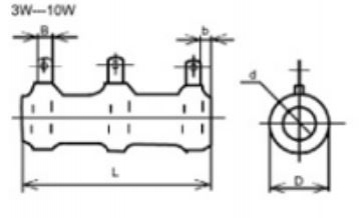

| Type | Rated Power (W) | Resistance Range (Ω) | Dimensions (mm) | |||
| L | D | I | T | |||
| RX25-3 | 3 | 0.1-2k | 19±1 | 6±1 | 12±1 | 0.5 |
| RX25-5 | 5(6) | 0.1-5k | 24±1 | 9±1 | 6±1 | 0.5 |
Resistance Tolerance: ±5%; ±10%

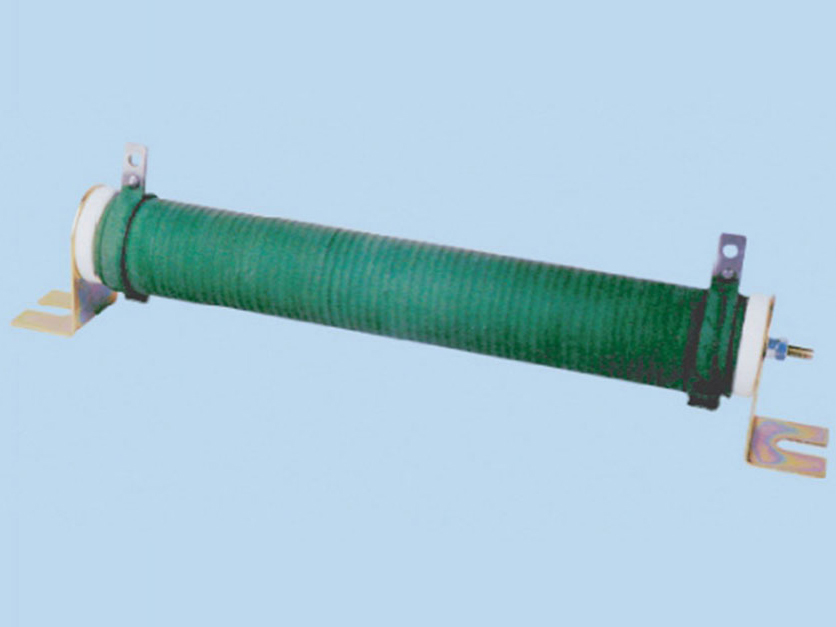

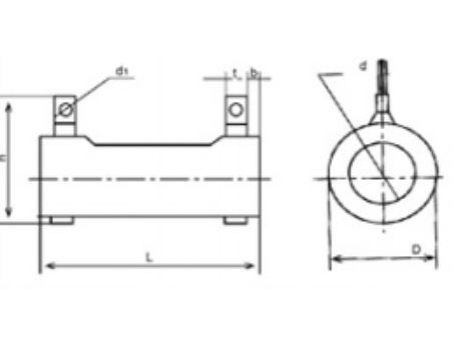

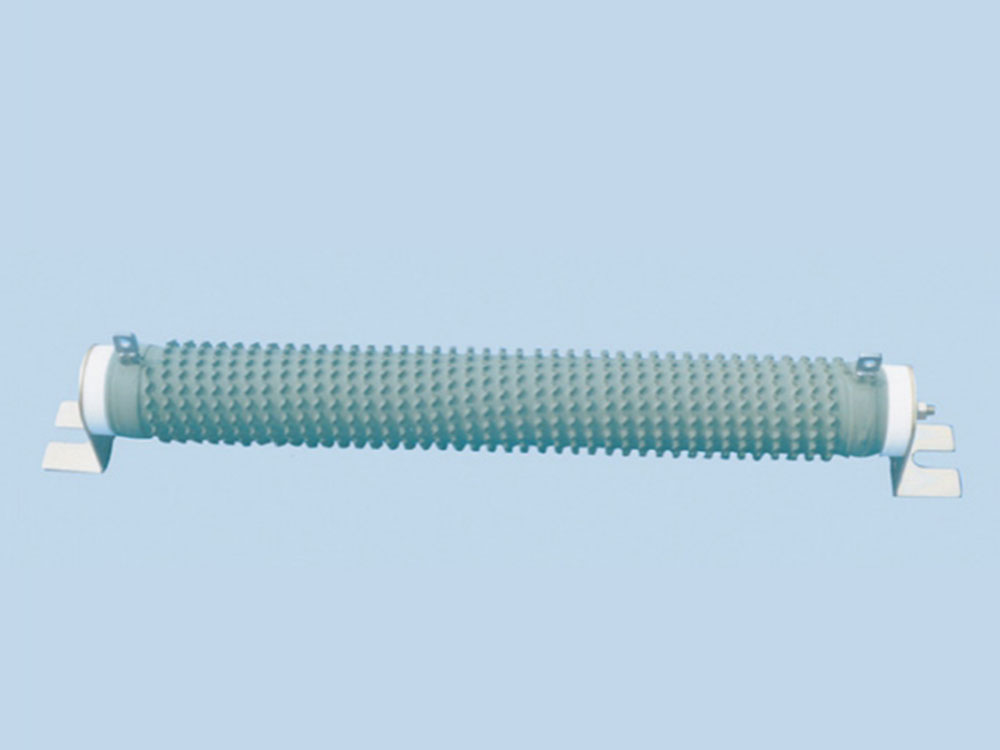

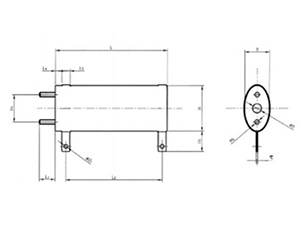

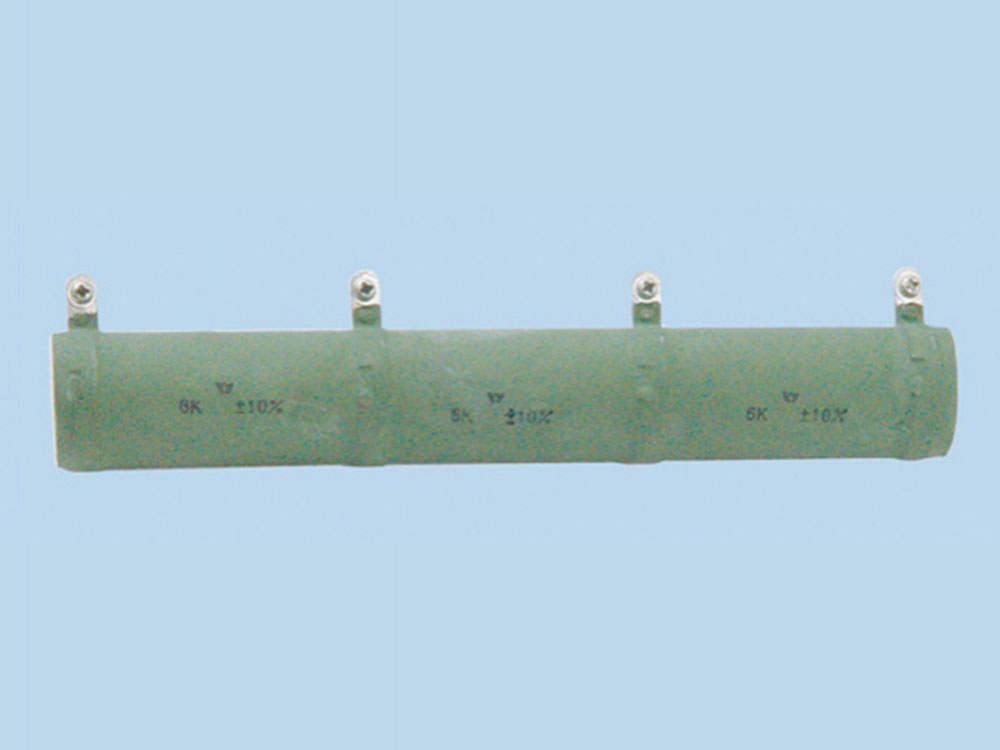

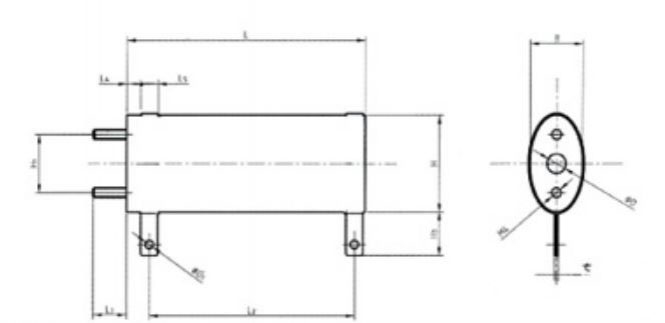

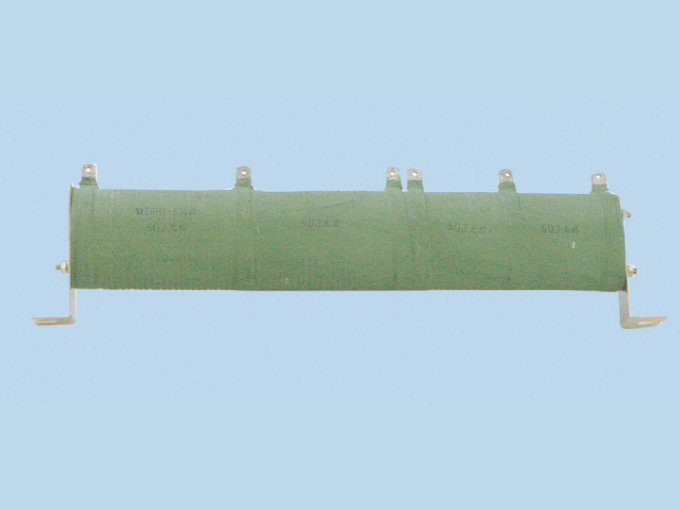

RX26 Coating Wire Wound Resistor
| Type | Rated Power (W) | Resistance Range (Ω) | Dimensions (mm) | ||||||
| L | D | H | B | D | D1 | T | |||
| RX26-30 RX26-80 | 30 | 0.1-1k | 80±1.5 | 17±2 | 36±2.5 | 35 ±0.8 | 8±0.5 | 2 | 5.4 |
| 80 | 0.1-1.5k | 91 ±2.4 | 29±3 | 46±3 | 4.5±1 | 20±1.1 | 2.5 | 8 | |
| RX26-100 | 100 | 0.5-2k | 140 ±3.2 | 29±3 | 46±3 | 4.5±1 | 20±1.1 | 2.5 | 8 |
| RX26-120 | 120 | 0.5-2.2k | 160 ±3.5 | 29±3 | 46±3 | 4.5 ±1 | 20±1.1 | 2.5 | 8 |
| RX26-150 | 150 | 0.5-4.3k | 195 ±3.5 | 29±3 | 46±3 | 4.5±1 | 18±1.1 | 2.5 | 8 |
| RX26-200 | 200 | 1-4.7k | 215 ±6 | 29±3 | 46±3 | 4.5±1 | 18±1.1 | 2.5 | 8 |
| RX26-2S0 | 250 | 1-6.1k | 303 ±6 | 29±3 | 46±3 | 4.5±1 | 18±1.1 | 2.5 | 8 |
| RX26-300 | 300 | 1.5-6.3k | 254±6 | 45±4 | 63±4 | 6±1 | 24 ±1.2 | 4.5 | 8 |
| RX26-400 | 400 | 1.5-6.8k | 330 ±6 | 45±4 | 63±4 | 6±1 | 24 ±1.2 | 4.5 | 8 |
| RX26-500 | 500 | 1.5-8.2k | 303 ±6 | 55±4 | 73±4 | 6±1 | 35±3 | 4.5 | 10 |
| RX26-600 | 600 | 1.5-9k | 300 ±6 | 60±4 | 73±4 | 6±1 | 35±3 | 4.5 | 10 |
| RX26-750 | 750 | 2-10k | 390 ±6 | 60±4 | 73±4 | 7±1 | 35±3 | 4.5 | 12 |
| RX26-1000 | 1000 | 5-12k | 500 ±6 | 70±4 | 80±4 | 7±1 | 40±5 | 5 | 12 |

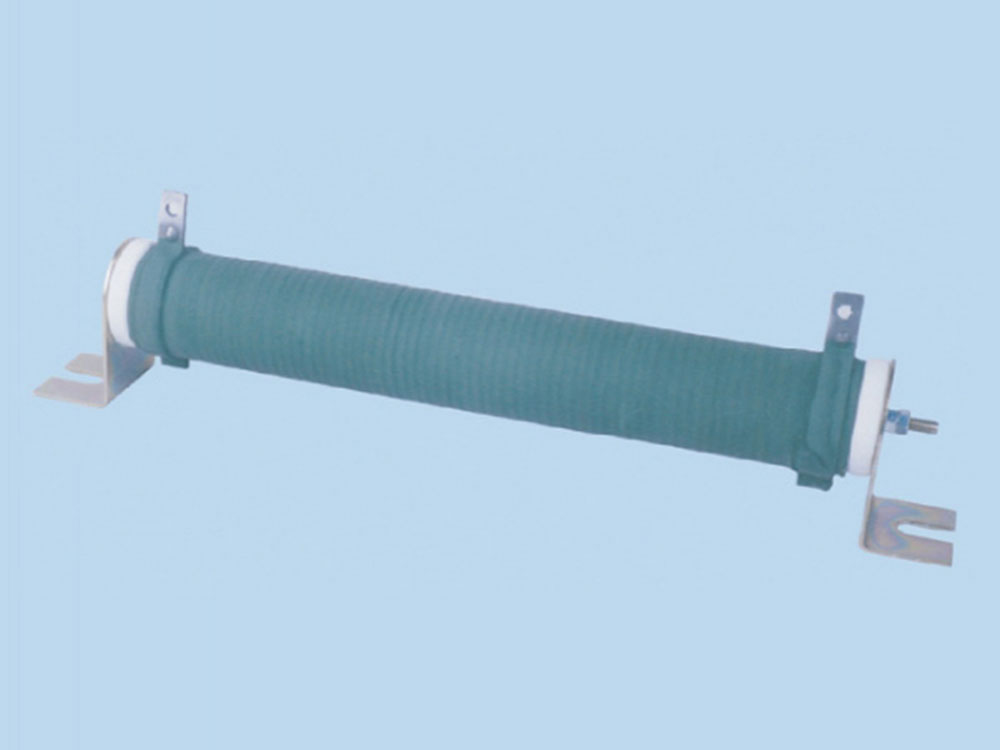

Note: coating wire wound resistor with corrugated ribbon can be manufactured with a smaller size.

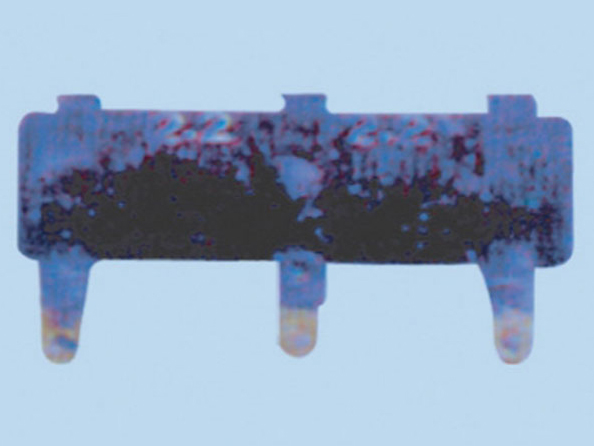

RXT Flat Type Coating Wire Wound Resistor
Nominal resistance allowable deviation: ±5% (J) ±10% ( K)
Nominal resistance series: the priorities are the E12 and E24 series of IEC63.
Various types of pin modes, resistance wire corrugated structure and multi-pin resistor are available based on clients’
requirements.
| Type | Rated Power (W) | Resistance Range (Ω) | Dimensions (mm) | |||||||||||
| L1 | L2 | L3 | L4 | L5 | H | H1 | H3 | B | D | D1 | t | |||
| RXT-20 | 30 | 0.1-1k | 60±2 | 49±2 | 12±1 | 5 | 5 | 40±1 | 22±1 | 16±1 | 22±1 | 8 | 3 | 1.2 |
| RXT-100 | 100 | 0.1-1.5k | 100±2 | 86±2 | 14 ±1 | 6 | 6 | 40±1 | 24±1 | 16±1 | 22±1 | 8 | 3.5 | 1.2 |
| RXT-300 | 300 | 0.5-3.6k | 300 ±2 | 280 ±2 | 16±1 | 10 | 10 | 56±1 | 36±1 | 18±1 | 28±1 | 18 | M3 | 2 |
Shown above are some of our wire wound resistors with wide range of specifications for selection. Seen below are other types of resistors we provide. Our company is a leading passive electronic component manufacturer, and we have thousands of coil winding machines for the production of resistors, inductors and transformers. If you have special demands for electronic components, please let us know your needs and we can provide custom made products for you.
