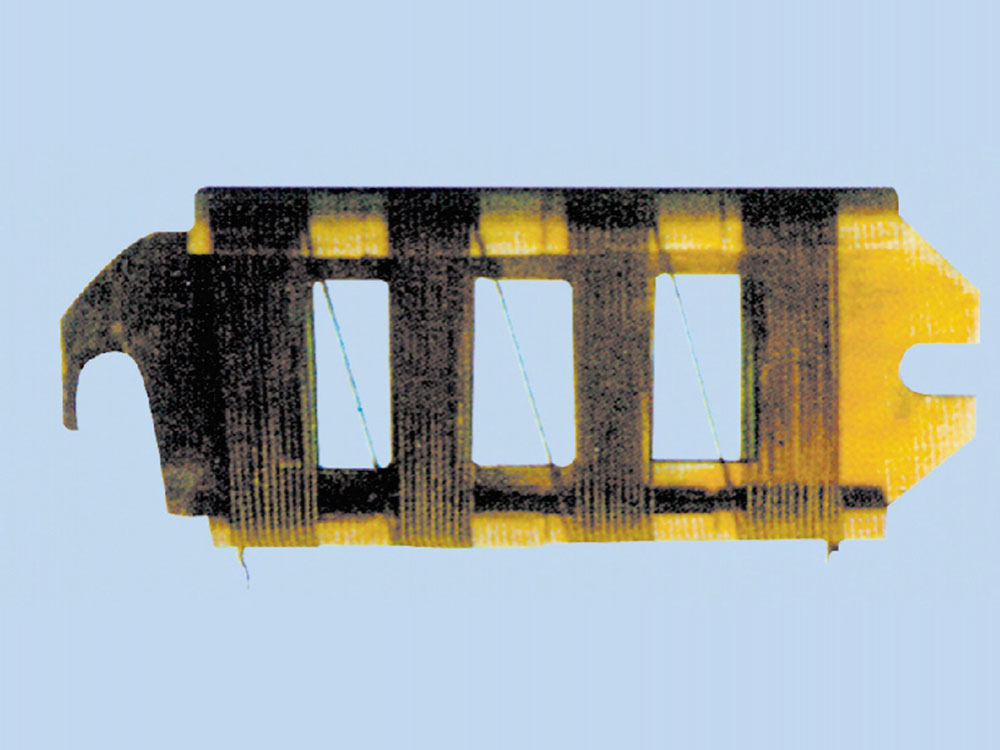

Plate resistor is characterized by good heat dissipation and high power load capacity. Thus it can be adopted independently expect for in combination. This resistor is usually applied to elevator, hoist, electric generator, frequency converter and other equipment for braking, speed governing and loading of the electronic circuit.

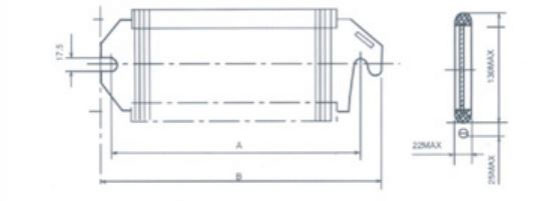

DimensionsDimension(mm) Type | A | B |
ZB1,ZB2.JZBW2 | 274 | 304 |
ZB3,ZB4.JZW1 | 335 | 365 |
Parameters
Resistance range: 0.5-500Ω
Resistance tolerance: ±5%(J); ±10%(K)
