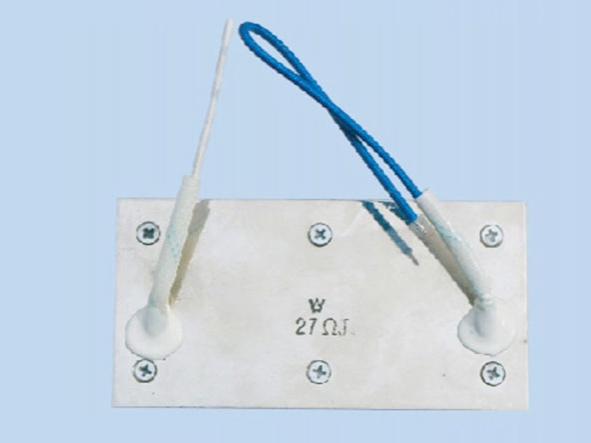

Chip Resistor
Chip resistor adopts precision thin film technology, achieving a ultralow tolerance of ±5%. Southern Group is a specialized manufacturer, capable of customizing various ohms of chip resistors according to your demands.

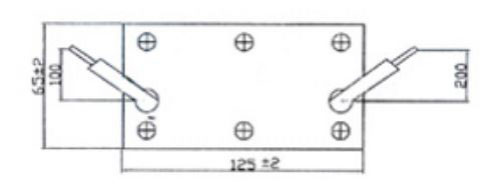

Dimensions
Specification
Resistance tolerance: ±5%
Power: 50W
| Item | Test method | Requirement |
| Insulation Resistance | DC500V: 1 minute | ≥100MΩ |
| Dielectric Strength | AC1500V: 1 minute | △R≤±(1%R+0.05Ω) no breakdown or flashover |
| Short-time Overload | 5x rated power, 5s | △R≤±(2%R+0.05Ω) no breakdown or flashover |
| Terminal Strength (Tension) | 10N; 16s | △R≤±(1%R+0.05Ω) no breakdown or flashover |
