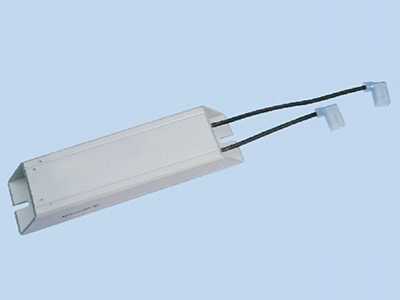

Aluminum Shell Wire Wound Resistor(Side Slot)
Aluminum shell wire wound resistor(side slot) adopts aluminum shell and side slot design. It can be flexibly installed on the dissipator.

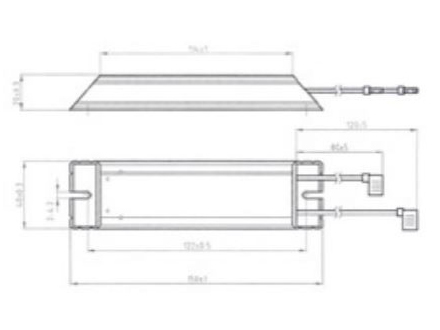

Parameters| Power (W) | L±2 (mm.) | L1±2 (mm.) | A (mm.) | B (mm.) | B (mm.) | R (Ω-kΩ ) |
| 65 | 150 | 132 | 20.6 | 40 | 4.3 | 1.0-1.0 |
| 75 | 165 | 147 | 20.6 | 40 | 4.3 | 1.0-1.0 |
| 100 | 210 | 192 | 20.6 | 40 | 4.3 | 1.0-1.5 |
| 120 | 240 | 222 | 20.6 | 40 | 4.3 | 1.0-1.5 |
| 155 | 300 | 282 | 20.6 | 40 | 4.3 | 1.5-1.8 |
| 190 | 360 | 342 | 20.6 | 40 | 4.3 | 2.0-2.0 |
