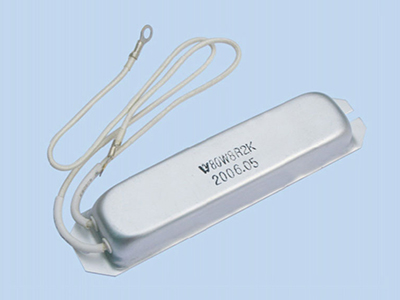

Aluminum Shell Wire Wound Resistor
Aluminum shell wire wound resistor can be adopted for high voltage applications with high pulse load, as a dump resistor and crowbar resistor. Its nominal power is 60w-100w and its maximum operating voltage is 2000V.

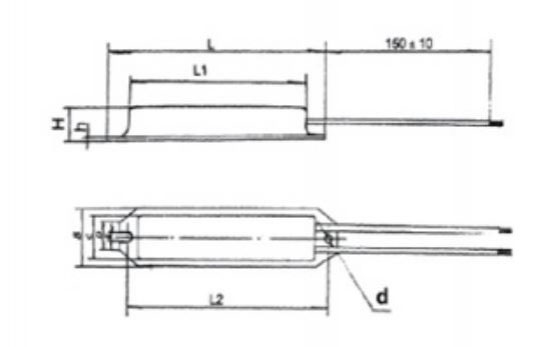

Dimensions
| Rated Power (W) | Dimensions (mm) | |||||||||
| L | L1 | L2 | B | C | D | E | H | h | d | |
| 60 | 100±2 | 75 ±2 | 90 ±2 | 30±1 | 26±1 | 17 ±1 | 4.5 | 13±1 | 1 | 4.5 |
| 80 | 130±2 | 104 ±2 | 118±2 | 42±1 | 38±1 | 22±1 | 6 | 21 ±1 | 1 | 6 |
| 120 | 182±2 | 150±2 | 172 ±2 | 42±1 | 38±1 | 22±1 | 6 | 21 ±1 | 1 | 6 |
| 100 | 15012 | 125±2 | 140±2 | 34±1 | 31 ±1 | 18±1 | 4.5 | 21 ±1 | 1 | 4.5 |

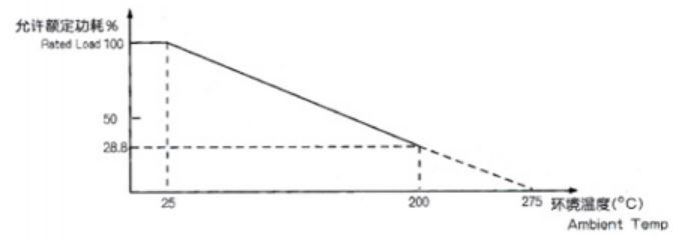

Nominal resistance allowable tolerance: ±5%±10%
Voltage resistance: 2000VDC or AC virtual value
Insulation resistance≥100MΩ
