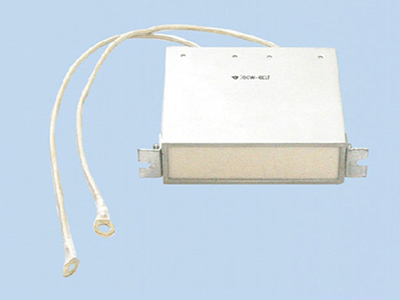

Aluminum Square Shell Wire Wound Resistor
Aluminum square shell wire wound resistor can be applied to high power conditions with high pulse load, playing a role of dump resistor and crowbar resistor. Its nominal power is 200W.

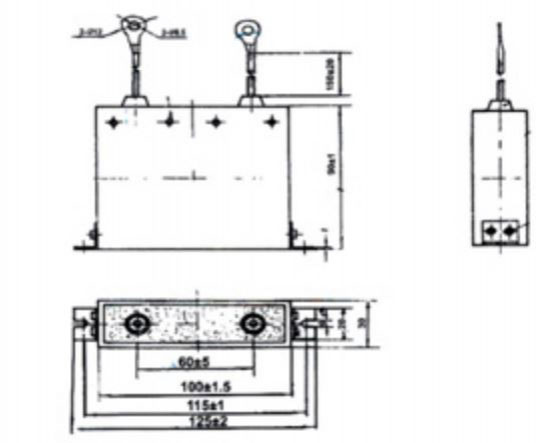

Dimensions
- Rated power:200W
- Resistance range: 0.1-50Ω
- Resistance tolerance: ±5%，±10%
- Insulation resistance: DC500V, 1min: >100MΩ
- Insulation voltage: AC2500V, 1min; AC300v 1 min
- storage temperature: -25-+80℃
- operating temperature: -40-+80℃
