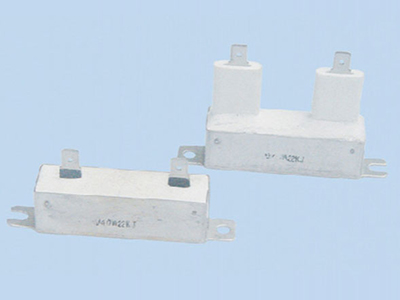

Stainless Steel Wire Wound Resistor

Electronic Component Manufacturer, Electrical Passive Component,Wire Wound Resistor Manufacturer

Aluminum square shell wire wound resistor can be applied to high power conditions with high pulse load, playing a role of dump resistor and crowbar resistor. Its nominal power is 200W.

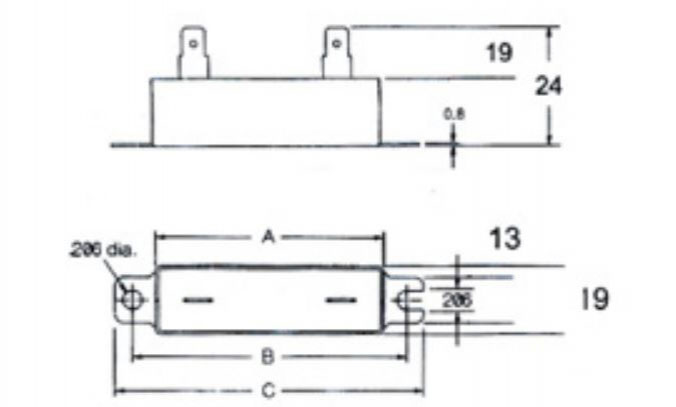

Dimensions

Parameters

Stainless Steel Shell Resistors
Power		Dimensions(mm)			Resistance Range(Ω)
Without Heat Sink	With Heat Sink	Dimensions(mm)
Without Heat Sink	With Heat Sink	A	B	C
20	45	25	37	48	1.1-2750
40	70	6.5	76	86	0.2-22K
50	100	98	105	116	0.2-66K

Note: when the environment temperature exceeds 25℃ and the resistor’s temperature reaches 275℃ under rated power, then add a 255×255×1mm metal heat sink.
